Cable drag chain for sale, inner size 25 x 25mm, 25 x 38mm, 25 x 50mm and 25 x 60mm are available. Cable drag chain is suitable for use in reciprocating situations, such as CNC machine tools, electronic equipment and lifting and transportation equipment.

Note: cable drag chain length can be customized, please contact us.

Specification

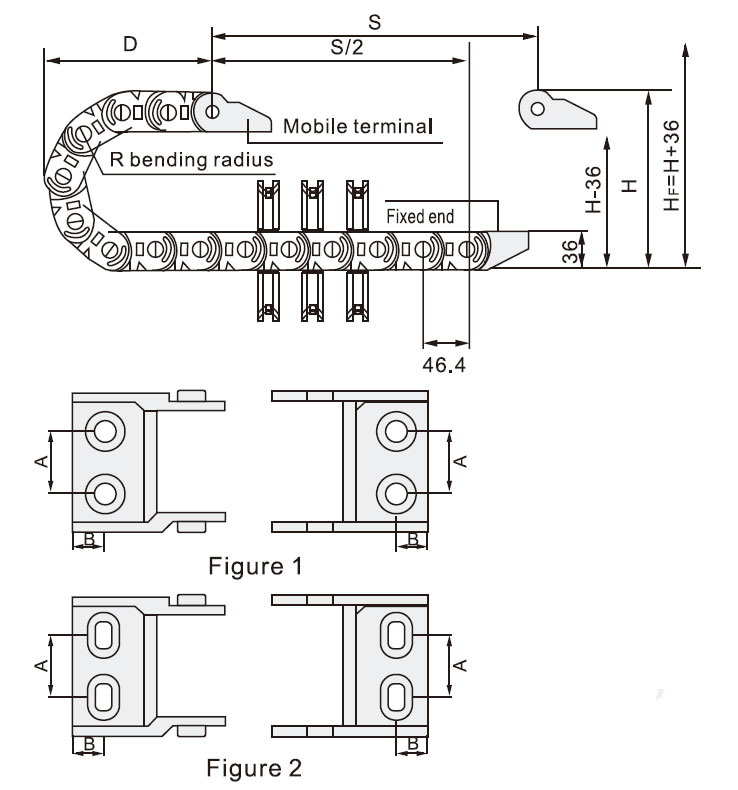

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 46.4mm, excluding the number of joints per meter= 22, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

Tips: Features of cable drag chain

Drag chain cables are mainly used in industrial electronic systems, automatic generation lines, automation equipment, storage equipment, robots, robot arms, fire fighting systems, cranes, CNC machine tools and metallurgical industries.

The main characteristics of cable drag chain are bending resistance, torsion resistance, bending resistance, shallow water resistance, oil resistance, UV resistance, weather resistance, cold resistance, abrasion resistance, ability to withstand heavier mechanical external forces, and faster acceleration and stronger flexural resistance, suitable for installation under continuous reciprocating motion, especially in frequent bending occasions under industrial environment.
