Model	CHN-CDC-H3025	CHN-CDC-H3038	CHN-CDC-H3050	CHN-CDC-H3057	CHN-CDC-H3060	CHN-CDC-H3077	CHN-CDC-H30103

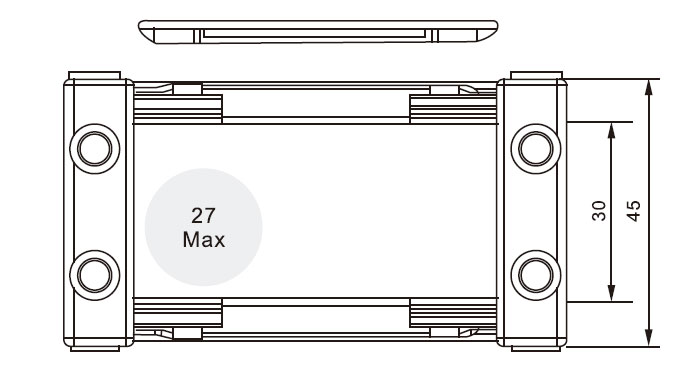

Inner Height	30mm	30mm	30mm	30mm	30mm	30mm	30mm
Inner Width	25mm	38mm	50mm	57mm	60mm	77mm	103mm
Outer Height	45mm	45mm	45mm	45mm	45mm	45mm	45mm
Outer Width	43mm	56mm	68mm	75mm	78mm	95mm	121mm
Bending Radius (R)	55mm, 75mm, 100mm, 125mm, 150mm, 175mm
Open Mode	Bridge type	Bridge closed					Bridge type
Pitch Distance	46mm
Bridge Weight	1.06kg	1.12kg	1.17kg	1.2kg	1.21kg	1.26kg	1.46kg
Closed Weight	/	1.24kg	1.34kg	1.45kg	1.46kg	1.6kg	/

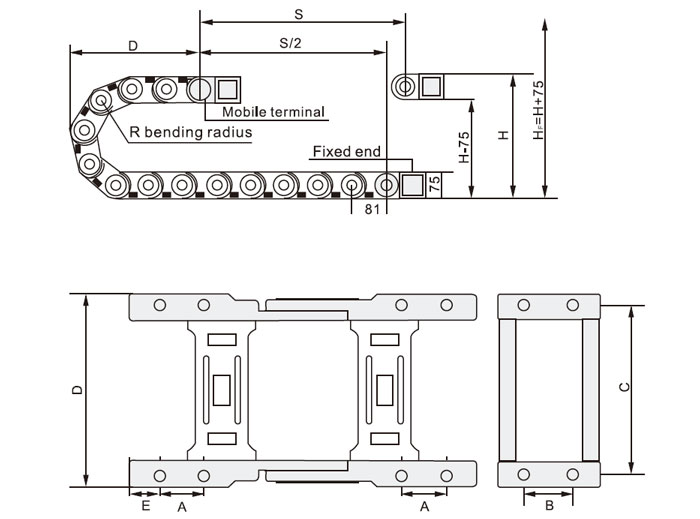

Dimension	CHN-CDC-H3025	CHN-CDC-H3038	CHN-CDC-H3050	CHN-CDC-H3057	CHN-CDC-H3060	CHN-CDC-H3077	CHN-CDC-H30103
A	16
B	16
C	38	51	63	70	73	90	116
D	46	59	71	78	81	98	125
E	9.5
Aperture (φ)	6

R	55	75	100	125	150	175
H	155	195	245	295	345	395
D	124	144	169	194	219	244
K	290	353	432	510	589	667

R	55	75	100	125	150	175
H	155	195	245	295	345	395
D	124	144	169	194	219	244
K	290	353	432	510	589	667

R	55	75	100	125	150	175
H	155	195	245	295	345	395
D	124	144	169	194	219	244
K	290	353	432	510	589	667

Cable Drag Chain, 30 x 50mm

Cable Drag Chain, 25 x 60mm

Cable Drag Chain, 60 x 100mm

Cable Drag Chain, 40 x 60mm

Cable Drag Chain, 30 x 50mm

Cable Drag Chain, 18 x 50mm

R	55	75	100	125	150	175
H	155	195	245	295	345	395
D	124	144	169	194	219	244
K	290	353	432	510	589	667
