Model	CHN-CDC-T1818	CHN-CDC-T1825	CHN-CDC-T1837	CHN-CDC-T1850
Inner Height	18mm	18mm	18mm	18mm
Inner Width	18mm	25m	37mm	50mm
Outer Height	23mm	37mm	23mm	23mm
Outer Width	29mm	50mm	47mm	60mm
Bending Radius ®	28mm, 38mm, 48mm, 55mm, 60mm, 75mm, 100mm
Open Mode	Semi closed inner opening
Aperture (φ)	5 x 7L	5 x 8.5L	5 x 9L	5 x 9L

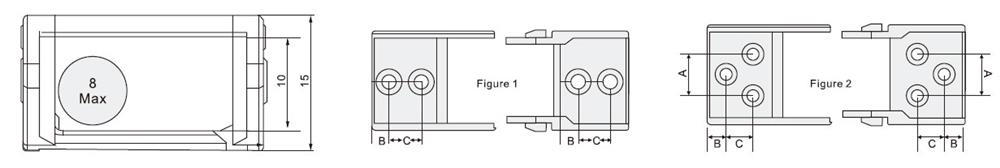

Connector Hole Distance	A=8mm, B=11.5mm, C=9mm	A=12, B=7.5mm, C=11mm	A=24.5mm, B=7.5mm, C=7.5mm	A=37.5mm, B=8mm, C=7.5mm
Connector Ordering Model	18.18.BF.12PZ.(figure1)	18.25.BF.12PZ.(figure2)	18.37.BF.12PZ.(figure2)	18.50.BF.12PZ.(figure3)
Weight	0.33kg	0.35kg	0.39kg	0.44kg

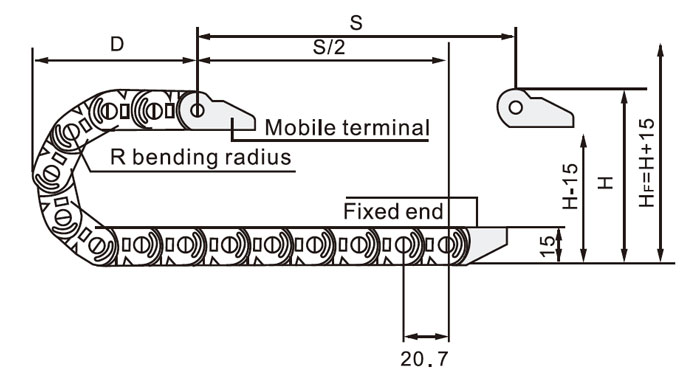

R	18	28	38
H	51	71	91
D	47	57	67
K	101	131	164
