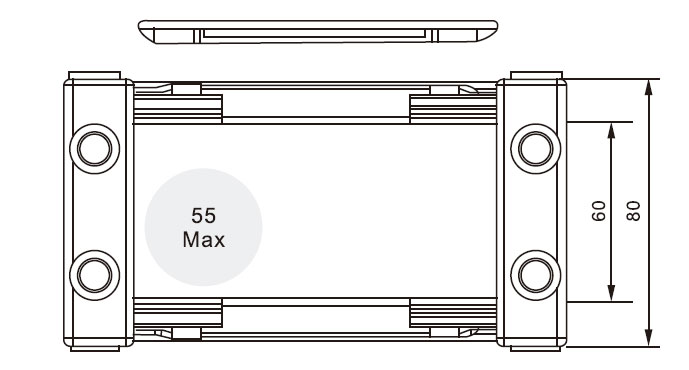

Model	CHN-CDC-H6060	CHN-CDC-H60100	CHN-CDC-H60150	CHN-CDC-H60200	CHN-CDC-H60250
Inner Height	60	60	60	60	60
Inner Width	60	100	150	200	250
Outer Height	80	80	80	80	80
Outer Width	91	131	181	231	281
Bending Radius ®	125cm, 150cm, 200cm, 250cm, 300cm, 400cm, 500cm
Open Mode	Bridge type	Bridge closed	Bridge closed	Bridge type	Bridge type
Pitch Distance	66
Bridge Weight	2.65kg	2.81kg	2.98kg	3.26kg	3.39kg
Closed Weight	/	3.43kg	3.82kg	4.45kg	/

Dimension	CHN-CDC-H6060	CHN-CDC-H60100	CHN-CDC-H60150	CHN-CDC-H60200	CHN-CDC-H60250
A	30	30	30	30	30
B	42	42	42	42	42
C	82	122	177	222	272
D	97	137	187	237	287
E	16	16	16	16	16
Aperture (φ)	8	8	8	8	8

R	125	150	200	250	300	400	500
H	330	380	480	580	680	880	1080
D	256	281	331	381	431	531	631
K	610	688	845	1002	1159	1473	1787
