Model	CHN-CDC-H4060	CHN-CDC-H4075	CHN-CDC-H40100	CHN-CDC-H40150	CHN-CDC-H40200
Inner Height	40	40	40	40	40
Inner Width	60	75	100	150	200
Outer Height	60	60	60	60	60
Outer Width	73	98	123	173	223
Bending Radius ®	75cm, 100cm, 125cm, 150cm, 200cm, 250cm
Open Mode	Bridge type	Bridge closed	Bridge closed	Bridge type	Bridge type
Pitch Distance	66
Bridge Weight	1.83kg	1.95kg	2.09kg	2.33kg	2.7kg
Closed Weight	/	2.13kg	2.32kg	/	/

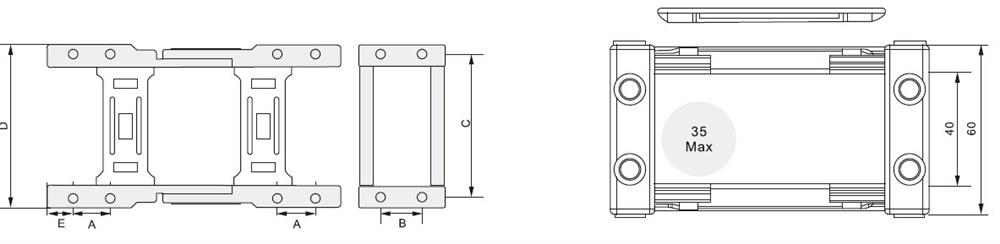

Dimension	CHN-CDC-H4060	CHN-CDC-H4075	CHN-CDC-H40100	CHN-CDC-H40150	CHN-CDC-H40200
A	24	24	24	24	24
B	26	26	26	26	26
C	75	90	115	165	215
D	88	103	128	178	228
E	16	16	16	16	16
Aperture (φ)	8	8	8	8	8

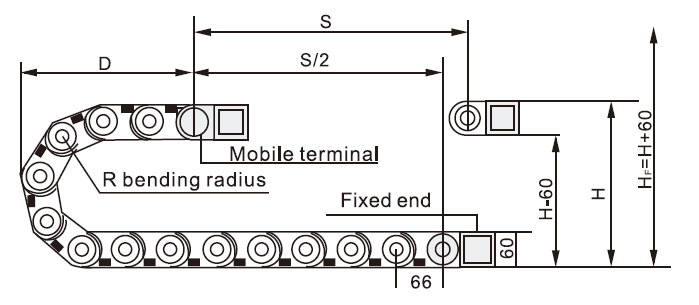

R	75	100	125	150	200	250
H	210	260	310	360	460	560
D	171	196	221	246	296	345
K	396	475	553	632	789	946

R	75	100	125	150	200	250
H	210	260	310	360	460	560
D	171	196	221	246	296	345
K	396	475	553	632	789	946

R	75	100	125	150	200	250
H	210	260	310	360	460	560
D	171	196	221	246	296	345
K	396	475	553	632	789	946

Cable Drag Chain, 40 x 60mm

Cable Drag Chain, 25 x 60mm

Cable Drag Chain, 60 x 100mm

Cable Drag Chain, 40 x 60mm

Cable Drag Chain, 30 x 50mm

Cable Drag Chain, 18 x 50mm

R	75	100	125	150	200	250
H	210	260	310	360	460	560
D	171	196	221	246	296	345
K	396	475	553	632	789	946
