Model	CHN-CDC-T1515	CHN-CDC-T1520	CHN-CDC-T1530	CHN-CDC-T1540	CHN-CDC-T1550
Inner Height	15mm	15mm	15mm	15mm	15mm
Inner Width	15mm	20m	30mm	40mm	50mm
Outer Height	20mm	20mm	20mm	20mm	20mm
Outer Width	25mm	30mm	40mm	50mm	60mm
Bending Radius ®	28mm, 38mm, 48mm
Open Mode	Semi closed inner opening
Aperture (φ)	4 x 7Lmm

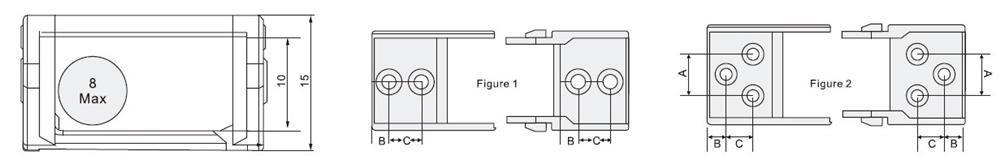

Connector Hole Distance	A=9.5mm,B=9.5mm, C=6.5mm	A=10mm, B=4mm, C=6.5mm	A=20mm, B=3.5mm, C=12mm	A=28mm, B=4.5mm, C=14mm	A=40mm, B=4mm, C=12mm
Connector Ordering Model	15.15.BF.12PZ.(figure1)	15.50.BF.12PZ.(figure2)	15.30.BF.12PZ.(figure3)	15.40.BF.12PZ.(figure3)	15.50.BF.12PZ.(figure3)
Weight	0.26kg	0.3kg	0.34kg	0.38kg	0.44kg

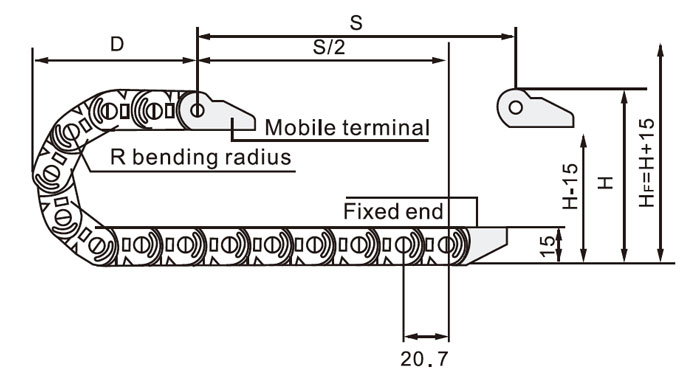

R	18	28	38
H	51	71	91
D	47	57	67
K	101	131	164
