Plastic cable drag chain innner size can choose 10 x 10mm (0.39" x 0.39mm"), 10 x 15mm (0.39" x 0.59"mm), 10 x 20mm (0.39' x 0.78") and 10 x 30mm (0.39" x 1.18"mm). Simple installation, work smoothly, traction and protect built-in cables, oil pipes, air pipes, water pipes, etc.

Note: cable drag chain length can be customized, please contact us.

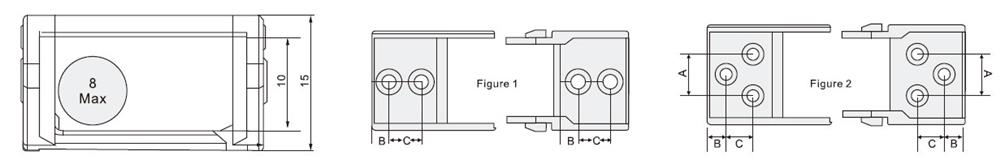

Specification

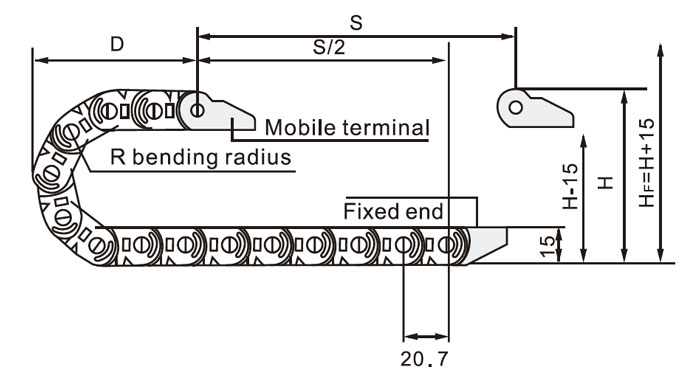

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 20.7mm, excluding the number of joints per meter= 49, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

Cable drag chain installation tips

1. Do not untie the cable from one end of the cable drag chain. Instead, rotate the cable drag chain to unfold the cable. If necessary, unfold or hang the cable.
2. Attention must be paid to the minimum bending radius of the cable.
3. The cables must be laid loosely side by side in the drag chain, separated as much as possible, separated by spacers or penetrated into the separation cavity of the bracket, the gap between the cables in the drag chain should be at least 10% of the cable diameter.
4. The cables in the drag chain must not touch each other or be bundled together.
5. Both points of the cable must be fixed, or at least the moving end of the drag chain must be fixed. Generally, the distance between the moving point of the cable and the end of the able drag chain should be 20-30 times the diameter of the cable.
6. Ensure that the cable moves completely within the bending radius, that is, it cannot be forced to move. This way the cables can be moved with each other. After a period of operation, it is best to check the position of the cable. The inspection must be carried out after the push and pull movement.
7. If the drag chain breaks, the cable also needs to be replaced, because damage caused by excessive stretching cannot be avoided.
