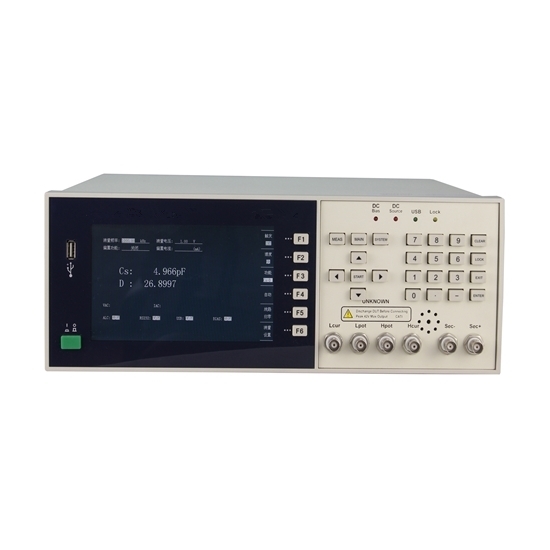

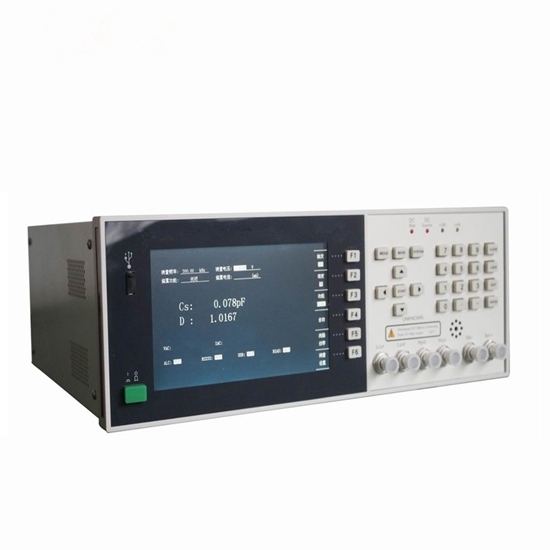

Digital LCR Meter, 20Hz~1MHz


$3739.54
Digital LCR meter frequency range 20Hz~1MHz. 0.05% accuracy. Measure inductance (L) max. 9999.99H, capacitance (C) max. 9.999
SKU: CHN-LCRM-20100
Free Shipping Worldwide
Delivery date: 6-12 days

Features

  • Multi-specification test function, The test voltage or current automatic level control of ALC function.
  • Output impedance of 4 different signal sources: 30Ω, 50Ω, 100Ω, 10/CC.
  • Internal 0V, 1.5V and 2V DC bias voltage, optional ± 5V (± 100mA) and 1A internal DC bias source.
  • Built-in comparator, 10 bins and bin counters. 10 point list scanning function.

Specification

ModelCHN-LCRM-2828CHN-LCRM-2819
Test Frequency20Hz~1MHz, 0.01Hz resolution20Hz~500kHz, 0.01Hz resolution
Test Specifications|Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
Basic Test Accuracy0.05%
Equivalent CircuitSeries, parallel
Mathematical FunctionAbsolute value deviation, percentage deviation
Range ModeAuto, Hold, manual
Trigger ModeInternal, Manual, External, Bus
Measurement Speed (≥1kHz)Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
Averaging Rate1—255
Delay Timetime 0—60s, n 1 ms step by step
Correction FunctionOpen, short, load
List Sweep10 points
Display ModeDirect, Δ, Δ%, V/I (V/I monitor)
Display800×480 RGB7inch 16:9 TFT LCD display
Power Requirements110V~240V
Test signal
Output Impedance30Ω, 50Ω, 100Ω, 10/CC selectable
Test LevelNormal: 5mV-2V Accuracy: 10%, with step of 1 mV
Constant level: 10mV-1V Accuracy: 5%, with step of 1 mV
DC Bias Sourceinterior: 0V, 1.5V, 2V, Accuracy 1%|
option: ±5V (±100mA) Dc bias source option 1A: 0-1A DC bias current source option.
Display Range|Z|, R, X: 0.01MΩ—99.9999 MΩ
DCR: 0.001MΩ—99.9999MΩ
|Y|, G, B: 0.00001µS—99.9999S
C: 0.00001pF—9.9999F
L: 0.00001µH—9999.99H
D: 0.00001—9.9999
Q: 0.00001—9999.9
θ (DEG): -179.999º—179.999º
θ (RAD): -3.14159—3.14159
Comparator Function 10 bins: 9 pass bin, 1 fail bin, AUX bin
MultiparameterFour parameters can be chosen optionally measure and display at the same time
Curve Scanning FunctionA variety of test conditions, the piece to be measured for graph scanning separation
MemoryInternal storage, USB extended storage

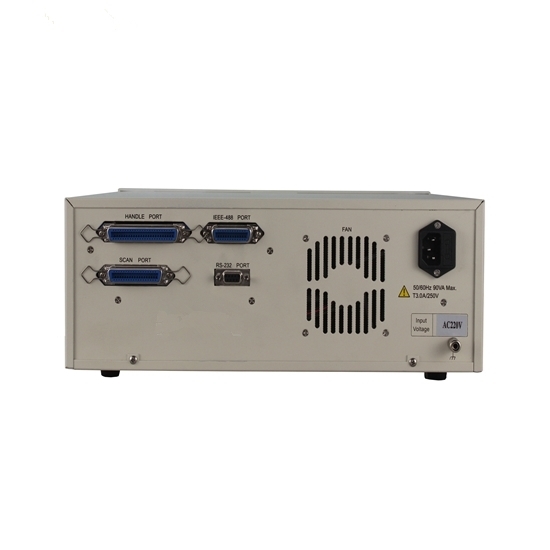

Interface Standard: RS232C, HANDLER, USB HOST, USB DEVICE, headphone jack, solid interface
Optional: GPIB, LAN
Size375mm (W)*135mm (H)*350mm (L)
CertificationCE
Standard Accessories26011B 4 terminal Kelvin test clip leads
26005B 4 terminal test fixture
26010 gilded shorting plate
Optional Accessories26009B SMD test fixture
26008A SMD Test box
26010 gilded shorting plate RS232
Communication software customization

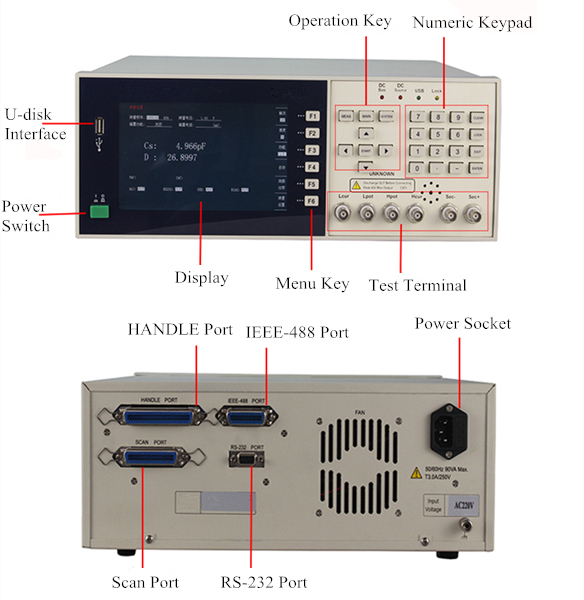

Panel Details

Panel Details of Digital LCR Meter, 20Hz~1MHz

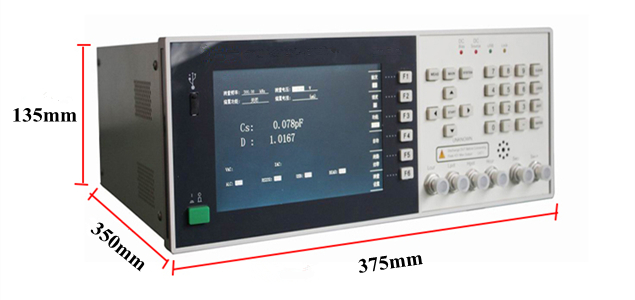

Dimension Drawing

Dimension Drawing of Digital LCR Meter, 20Hz~1MHz



Tips: LCR meter measurement steps.

  1. Set the test frequency.
  2. Test voltage or current level.
  3. Select test specifications, such as C, L, X, B, R, G, D, | Z |, | Y |, etc.
  4. Instrument calibration, mainly for open and short calibration, more precise LCR meter also needs to perform load calibration.
  5. Select test fixture.
  6. Fixture compensation
  7. Put the DUT on the fixture to start test.
