Model	CHN-LCRM-825	CHN-LCRM-826
Test Specifications	L, C, R, Z
Monitoring Specifications	D, Q, θ (deg), θ (rad) ESR
Accuracy	0.20%
Frequency	100Hz, 120Hz, 1kHz, 10kHz, 100kHz	100Hz, 120Hz, 1kHz, 10kHz
Display Range	L: 0.01μH~9999H Q: 0.0001~9999 C: 0.01pF~9999μF θ (deg): -179.99°~179.99° R, Z: 0.0001Ω~99.99MΩ θ (rad): -3.1416~3.1416 D: 0.001~9.999	L: 0.01μH~9999H Q: 0.0001~9999 C: 0.01pF~9999μF θ (deg): -179.99°~179.99° R, Z: 0.0001Ω~99.99MΩ θ (rad): -3.1416~3.1416 D: 0.001~9.999
Source Resistance	100Ω
Range	Automatic or Manual
Maximum Reading	5 bits of main specification and 5 bit display of sub specification
Signal Level	0.6Vrms
Test Speed	4 times/second, 1.5 times/second
Comparator	1 sets, compare main specifications
Adjustment	Open/short scan frequency reset for each range

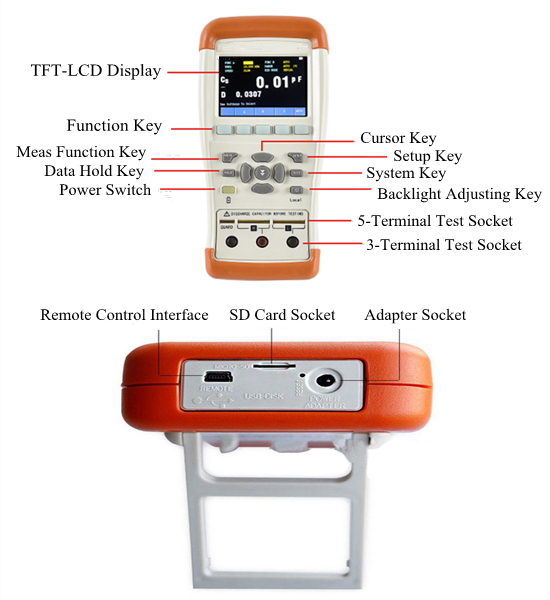

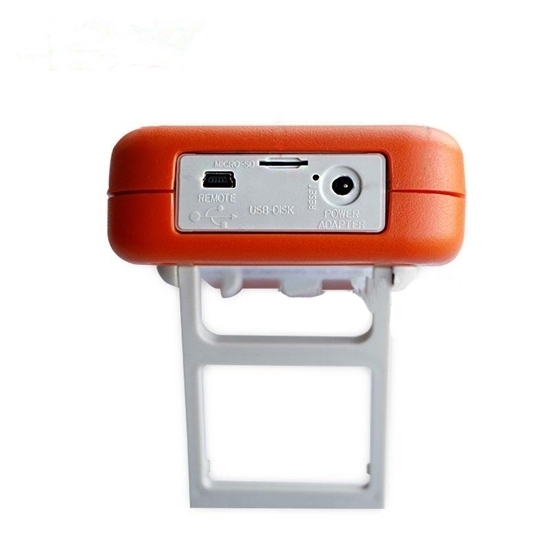

Interface	Build-in Mini-USB interface (virtual interface) Charging interface

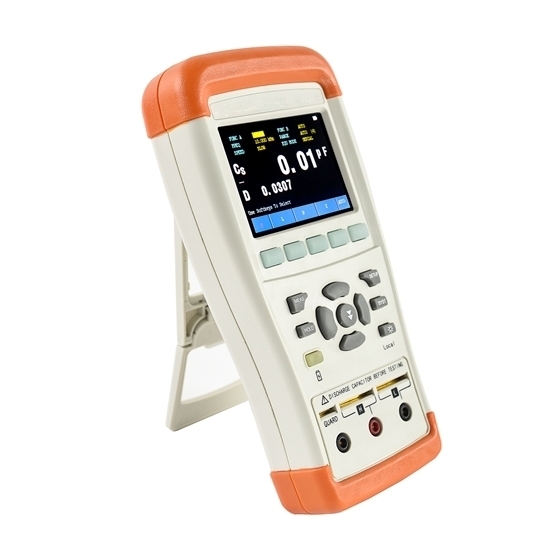

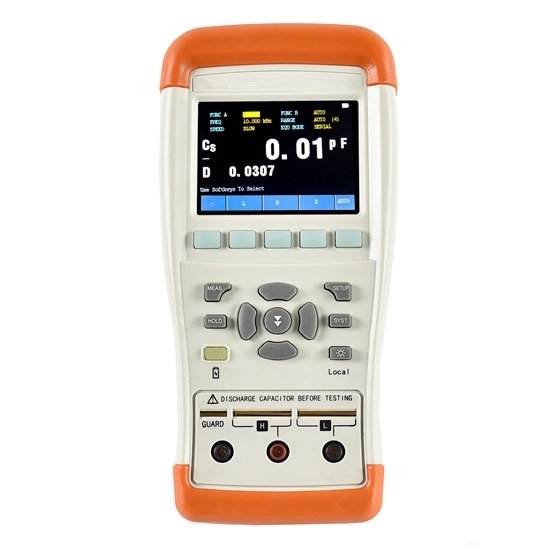

Others	2.8 inch real color 16M color TFT-LCD display, touch screen, data retention function, USB communication, compatible SCPI instruction set, middle and English switching, backlight adjustment, automatic shutdown
Power Requirements	Input: 100~240V, 50/60Hz, 0.35A Output: 9V 1A DC 7.4V Li, 1300mAh Rechargeable battery
Certification	CE

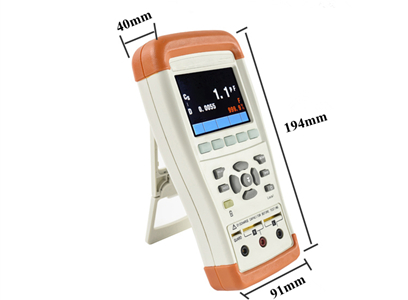

Size (mm)	91 (W) x 194 (H) x 40 (D)
