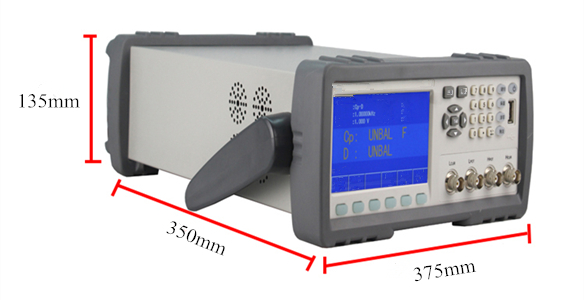

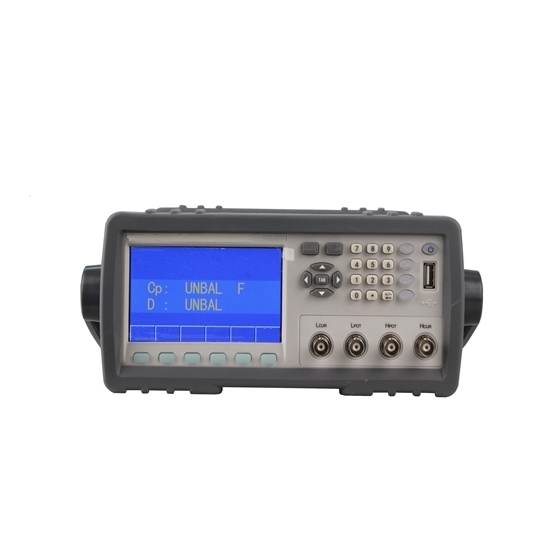

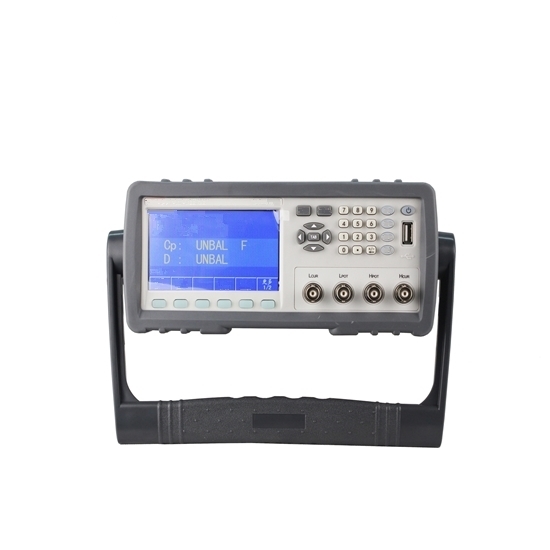

Model	CHN-LCRM-2816
Test Specifications	\|Z\|, \|Y\|, C, L, X, B, R, G, D, Q (deg), θ (Rad)
Test Frequency	50Hz~200kHz total of 37 frequency points
Basic Test Accuracy	0.05%
Equivalent Circuit	Series, parallel
Mathematical Function	Absolute value deviation, △%
Range Mode	Auto, Hold, manual
Trigger Mode	Internal, Manual, External, Bus
Measurement Speed (≥1kHz)	Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
Averaging Rate	1—255
Delay Time	time 0—60s, n 1 ms step by step
Correction Function	Open, short, load
Test Configuration	5 ports
List Sweep	4 points
Display Mode	Direct, Δ, Δ%, V/I (V/I monitor)
Display	6 resolution, 4.3 Inch LCD monitor
Output Impedance	30 Ω, 100 Ω selectable
Power Requirements	110V~240V
Test Level	Normal: 5mV－2V, Accuracy: 10%, with step of 1 mV Constant level: 10mV－1V, Accuracy: 5%, with step of 1mV
DC Bias Source	0V, 1.5V, 2V, Accuracy: 1% (customization)
Display Range	\|Z\|, R, X: 0.01mΩ—99.9999MΩ DCR: 0.001mΩ—99.9999MΩ \|Y\|, G, B: 0.00001µS—99.9999S C: 0.00001pF—9.9999F L: 0.00001µH—9999.99H D: 0.00001—9.9999 Q: 0.00001—9999.9 θ (DEG): -179.999º—179.999º θ (RAD): -3.14159—3.14159
Comparator Function	10 bins: 9 pass bin, 1 fail bin, AUX bin
Certification	CE
Memory	100 control setting memory for store/recall, Outside of 500

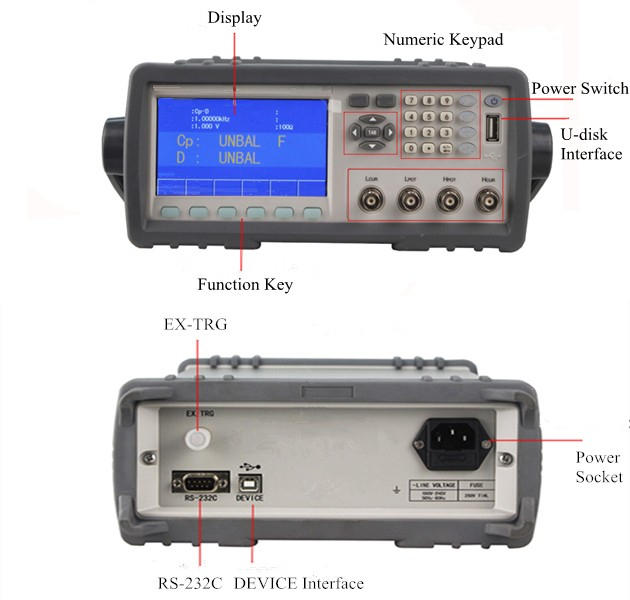

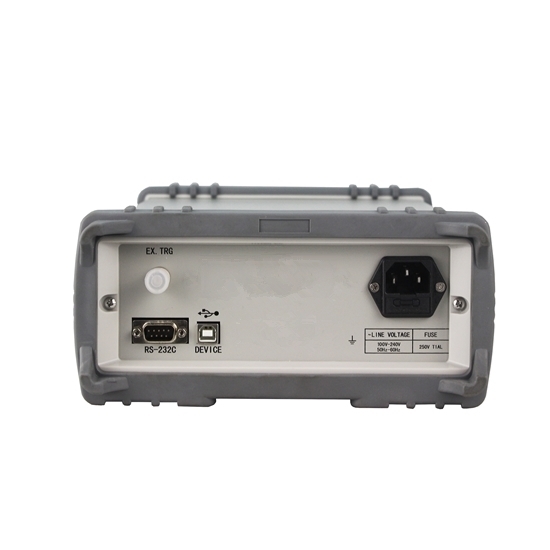

Interface	RS232C, USB HOST, USB DEVICE
