Model	CHN-LCRM-2817B	CHN-LCRM-2811C
Test Specifications	\|Z\|, C, L, R, D, Q	L-Q, C-D, R-Q, \|Z\|-Q
Test Frequency	50/60/80/100 120/200/400/500 800/1k/2k/4k/5k 80k/10k/20k/25k 40k/50k/100k	100Hz/120Hz/1kHz/10kHz
Test Level	0.1V, 0.3V, 1V
Basic Accuracy	0.1%	0.2%
Display Range	\|Z\|, R, X: 0.0001Ω—99.999MΩ C: 0.001pF—99999µF L: 0.001µH—99.999kH Q: 0.0001—9.9999 D: 0.0001—9.9999 Δ%: 99.999%—99.999%	\|Z\|, R: 0.0001Ω—99.999MΩ C: 0.01pF—99999μF L: 0.01µH—99999H D: 0.0001—9.9999 Q: 0.0001—9999.9
Measuring Speed	slow: 1.5 times/sec medium speed: 5 times/sec medium speed: 5 times/sec
Equivalent Circuit	series, paralle
Range Mode	auto, keep
Trigger Mode	internal, manual, external
Correction Function	open circuit, short circuit
Measuring End	5
Display Mode	direct reading, Δ%, grade and file count
Sorting	Four stalls (The third gear is qualified. One gear is unqualified.) There is another attached gear

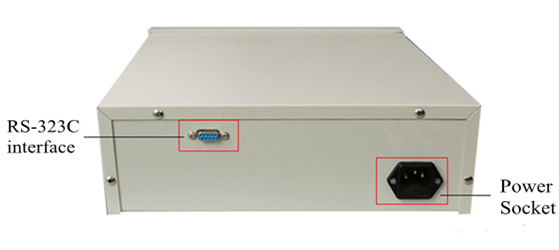

Interface	RS232C
Working Temperature, Humidity	0℃~40℃, ≤90% RH
Power Requirements	198V~242V AC, 47.5Hz~52.5Hz power waste ≤50 VA
Certification	CE

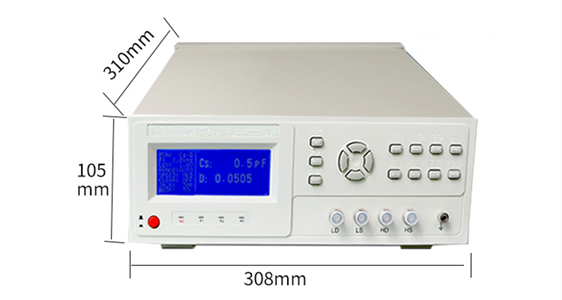

Size (W×H×D)	308mm×105mm×310mm
