Model	CHN-LCJBX-JXH-S4
Accuracy	±0.1%FS
Number of channels *	2 inlets to 1 outlet, 3 inlets to 1 outlet, 4 inlets to 1 outlet, 6 inlets to 1 outlet, 8 inlets to 1 outlet, 10 inlets to 1 outlet
Multi-channel input signal	0-20mV (including 2mV load cell output signal)
Output signal	0-20mV
Power supply	DC 12V/24V
Working temperature	-20~+85℃ (-4~+185℉)
Protection class	IP67
Weight	3 kg

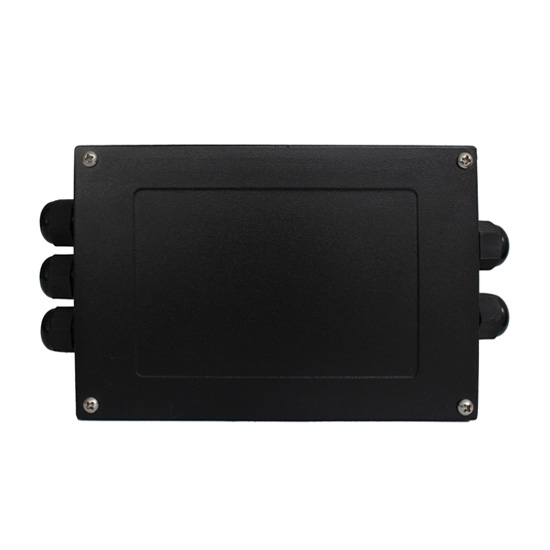

Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet

Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet
