Model	CHN-LCB-TJH-6C
Shipping weight	1.1~5kg
Capacity range *	1 ton~30 ton
Accuracy	0.02~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃ (-4℉~+149℉)
Input impedance	750±15Ω
Output impedance	700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

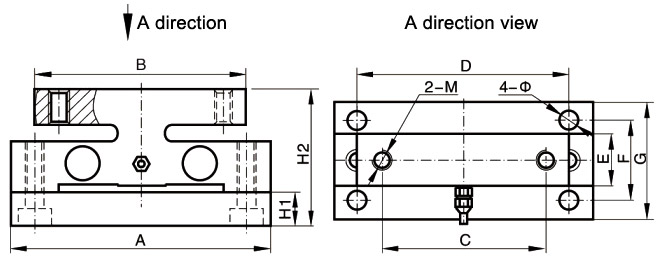

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H1	H2	Φ	M
1~5 ton	220	140	110	186	45	70	100	25	110	Φ13	M16
10 ton	240	180	120	192	50	128	180	41	134	Φ22	M20
20~30 ton	240	180	120	192	56	128	180	41	143	Φ22	M20
