Model	CHN-LCB-TJH-6A
Shipping weight	18.5~33.1kg

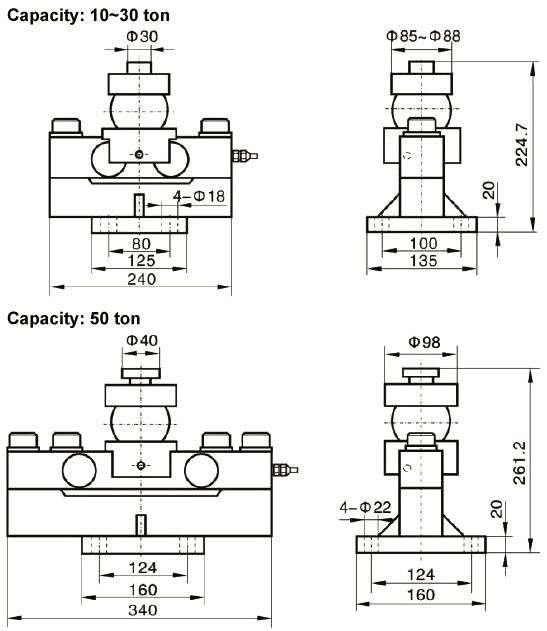

Capacity range *	10 ton~50 ton
Accuracy	0.02~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	750±15Ω
Output impedance	700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
