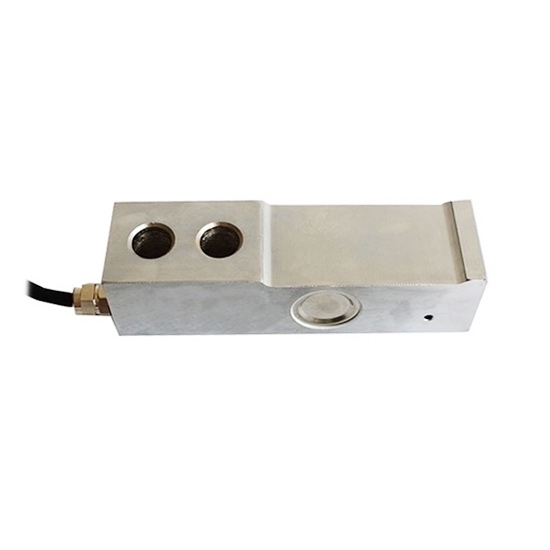

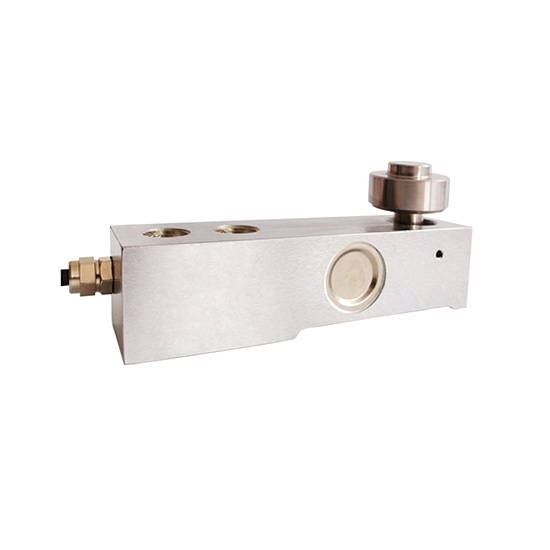

Model		CHN-LCB-DYHLJ
Shipping Weight		1.1~5kg
Capacity Range *		500kg/1000kg/2 ton/3 ton/5 ton
Accuracy		0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity		2.0±0.1mV/V
Creep		±0.02%F.S/30Min
Zero Output		±1%F.S
Temperature effect on zero		±0.002%F.S/10℃
Temperature effect on output		±0.002%F.S/10℃
Operating Temperature		-20℃~+60℃
Input Resistance		380±4Ω
Output Resistance		350±1Ω
Insulation Resistance		≥5000MΩ
Safety Overload		150%FS
Bridge voltage (excitation voltage)		DC 5-15V
Material		Alloy steel
Protection Class		IP67
Cable Length		2m (＜5ton), 5m (≥5ton)

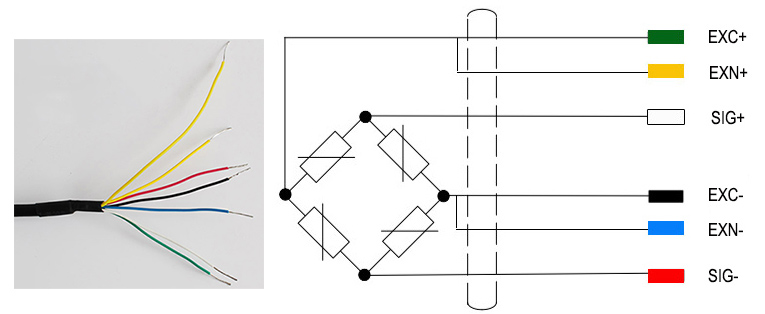

Wiring		EXC+: Green, EXN+: Yellow, SIG+: White, EXC-: Black, EXN-: Blue, SIG-: Red. Shielded wire: Yellow.

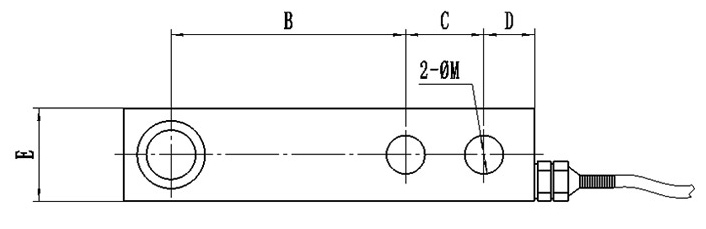

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H
500kg/1 ton	133.4	76.2	25.4	16.4	30.7	30	57.9	17
2 ton	136.7	76.2	25.4	16.7	36.8	36.6	57.9	23
3 ton	139.7	79.2	25.4	16.7	39	36.6	57.9	23
5 ton	171.5	95.2	38.1	16.7	42.9	43	73.8	29.4

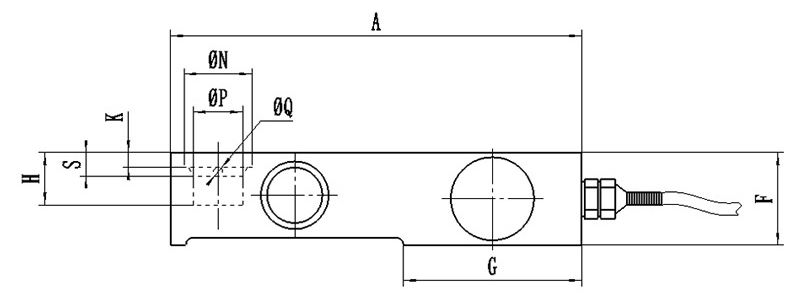

Capacity	Dimension (mm)
Capacity	K	M	N	P	Q	S
500kg/1 ton	4.8	12.7	22	15.9	3.1	7.7
2 ton	9.5	12.7	22	15.9	3.1	11.7
3 ton	9.5	15	22	15.9	3.1	11.7
5 ton	11	19	34.9	22.2	3.1	11.7
