Model	CHN-LCB-TJH-5B
Shipping weight	1.1~5kg
Capacity range *	200 kg~10 ton
Accuracy	0.02%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	380±10Ω
Output impedance	350±3Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel or stainless steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

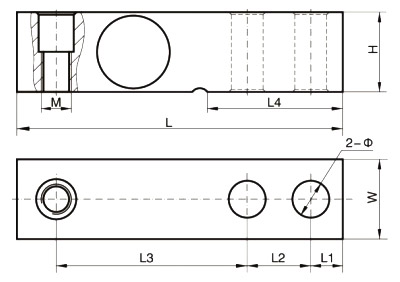

Capacity	Dimension (mm)
Capacity	L	L1	L2	L3	L4	H	Φ	M	W
200kg~2.5 ton	130	15.8	25.4	76.2	54	31.8	12.7	M12/M16	31.8
3~5 ton	171	19.1	38.1	95.3	80	38.1	20	M18*1.5	38.1
10ton	222.5	25.4	50.8	123.8	110	50.8	26	M24*2	50.8
