Model	CHN-WBV344M05
Shipping weight	1kg
Measuring range of input voltage *	DC 0-10mV ~ 0-1000V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range
Input impedance	When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
Output signal *	DC 0-20mA, 4-20mA
Power supply	DC 9-36V
Accuracy	0.2%F.S.
Load capacity	300Ω
Response time	≤20ms
Temperature drift	50*10^-6/℃
Static power consumption	0.32W
Isolation features	Isolation between input, output and power supply
Isolation voltage	DC 2.5kV, 1 min
Work temperature	-25~+70℃
Storage temperature	-40~+85℃
Protection features	Surge (inrush) immunity: IEC61000-4-5 Electrostatic discharge immunity: IEC61000-4-2 Radio frequency electromagnetic field radiation immunity: IEC61000-4-3 Electrical fast transient burst immunity: IEC61000-4-4 Conducted immunity of radio frequency electromagnetic field: IEC61000-4-6
Mean time between failures	＞50000h
Housing material	PC + Fire-retardant ABS

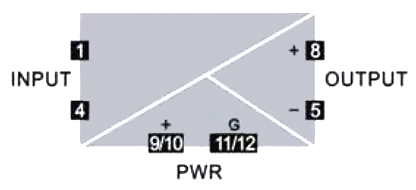

Wiring	Terminal connection

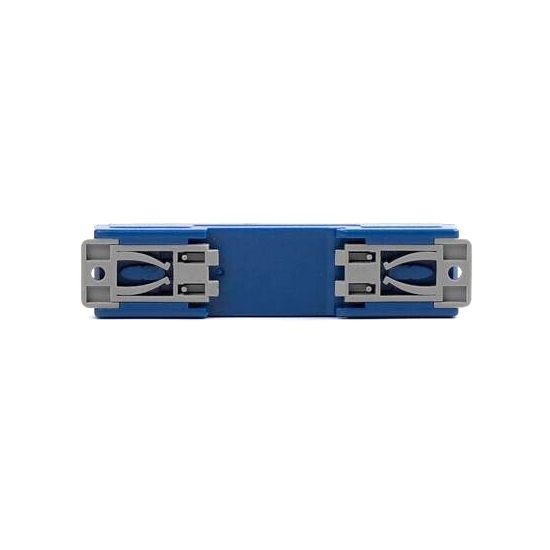

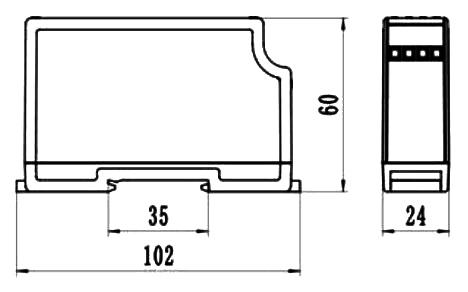

Installation	DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation
