3 Phase AC Voltage Sensor for 100V to 300V Measurement, Output 0-5V


$165.68
AC voltage sensor is a 3 phase voltage sensor with a measuring range from AC 100V to 300V, supply voltage DC ±12V, outpu
SKU: CHN-VOS-3AC300
Free Shipping Worldwide
Delivery date: 6-12 days

This SKU CHN-VOS-3AC300 is out of stock.
We recommend you another three-phase AC voltage sensor CHN-VOS-3AC500, which has measuring range of 3 phase AC 0-10V ~ 0-500V.


3 phase AC voltage sensor has measuring range of AC 100V/200V to 300V.

Specification:

ModelCHN-WB3V412Q17
Shipping weight1kg
Measuring range of input voltage *3 phase AC 0-100V ~ 0-300V
Overload capacityContinuous overload: 120% nominal input voltage for 24h
Short-time overload: 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range0% ~ 100% measuring range
Frequency range25Hz ~ 1kHz
Input impedanceRi=Ux*1kΩ/V
Output signalDC 0-5V
Power supplyDC ±12V
Accuracy1.0%F.S.
Load capacity5mA
Response time≤400ms
Temperature drift300*10-6/℃
Static current≤10mA
Isolation featuresIsolation between input and output, output terminals provides power supply
Isolation voltageAC 3kV, 1min
Work temperature0~50℃
Storage temperature-25~+70℃
Protection class of housingIP20
Mean time between failures>50000h
Housing materialFire-retardant ABS
WiringTerminal connection
InstallationDIN rail (NS35/7.5, NS35/15, EN50022)

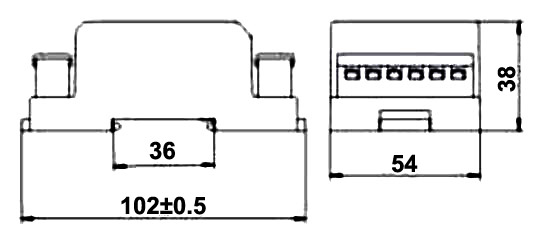

Voltage transducer AC 10V to 500V dimensional drawing (unit: mm):
3 phase AC voltage sensor for 100V to 300V dimension

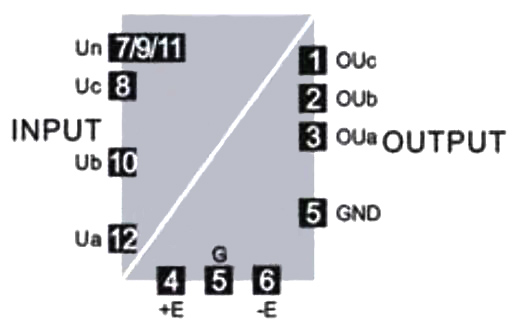

Voltage transducer AC 10V to 500V wiring diagram:
3 phase AC voltage sensor for 100V to 300V wiring
