Model	CHN-WBV144H21-AS
Shipping weight	1kg
Measuring range of input voltage *	DC 0-100mV ~ 0-70V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range
Input impedance	When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
Output signal	DC 4-20mA
Power supply *	DC 12V, 24V
Accuracy	0.5%F.S.
Load capacity	300Ω
Response time	≤250ms
Temperature drift	300*10^-6/℃
Isolation features	Isolation between input and output, output terminals provides power supply
Isolation voltage	AC 2kV, 1 min
Work temperature	-10~+60℃
Storage temperature	-25~+70℃
Protection features	Surge (inrush) immunity: Output/power supply 2kV 1.2/50μs Electrostatic discharge immunity: Contact discharge 6kV, air discharge 8kV Radio frequency electromagnetic field radiation immunity: A Electrical fast transient burst immunity: Signal line port ±2kV, power supply port ±2kV Conducted immunity of radio frequency electromagnetic field: A Inrush current: Input port common mode 5kA, differential mode 3kA, 8/20μs
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS

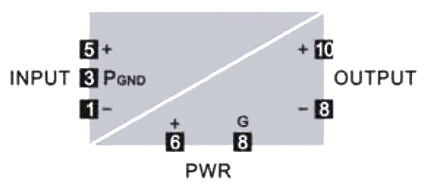

Wiring	Terminal connection

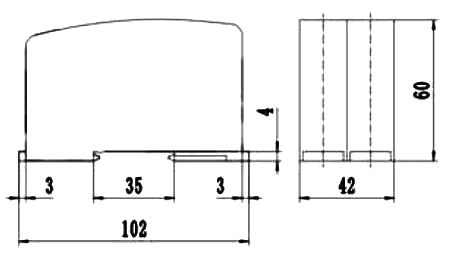

Installation	DIN rail (NS35/7.5, NS35/15, EN50022)
