Model	CHN-WBV023TK08-SS
Shipping weight	2kg
Measuring range of input voltage *	AC/DC 0-100V ~ 0-4000V
Working range	AC/DC 0-200V ~ 0-6000V
Turns ratio of coil *	20000:1000
Secondary coil impedance	55Ω
Zero current offset	≤±0.2mA (Ip=0)
Output signal *	AC/DC 50mA
Power supply *	DC ±12V, ±24V
Accuracy	0.5%F.S.
Linearity	≤0.1%
Load impedance	80Ω
Response time	≤200μs
Temperature drift of current offset	≤±0.6mA (-40~+85℃)
Power consumption current	10mA+IM (measuring current)
Isolation features	Isolation between input and output, output terminals provides power supply
Isolation voltage	Between the primary and secondary circuit: RMS 12kV, 50Hz, 1min
Work temperature	-40~+85℃
Storage temperature	-55~+125℃
Frequency band	DC ~5kHz
Mean time between failures	＞50000h
Housing material	PBT

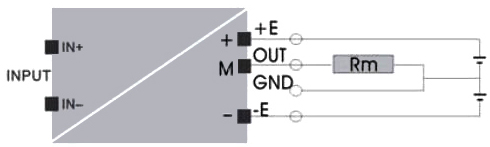

Wiring	Terminal connection

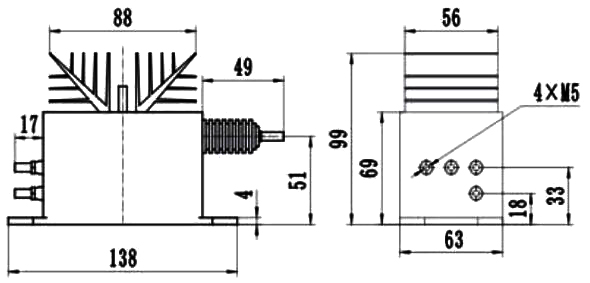

Installation	Screw fixation
