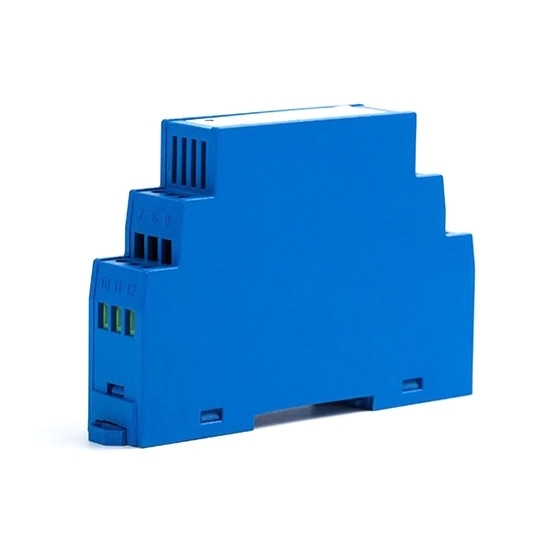

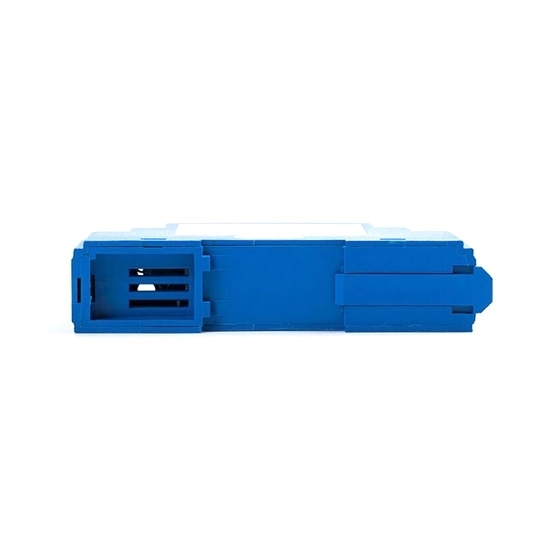

Isolated DC Voltage Sensor for Ripple Voltage 10mV to 1000V

DC voltage sensor has measuring range of 10mV/50mV/75mV/5V/50V/150V/200V/300V/400V/500V/750V to 1000V.

Specification:

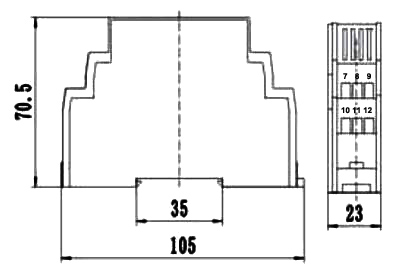

DC voltage sensor for ripple voltage 10mV to 1000V dimensional drawing (unit: mm):

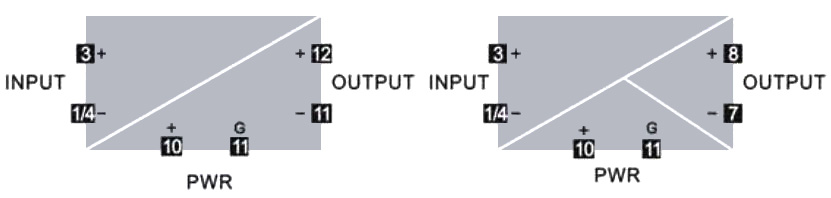

DC voltage sensor for ripple voltage 10mV to 1000V wiring diagram:
(The left diagram is for isolation between input and output, the right diagram is for isolation between input, output and power supply. 1: U≤600V, 4: U＞600V)

Tips: What is ripple voltage and why should we measure ripple voltage?
Ripple voltage refers to the power frequency AC voltage contained in the output DC voltage. The DC voltage should have been a fixed value, but it is often obtained by rectifying and filtering the AC voltage. Since the filtering is not thorough, there will be residual AC components. Even if it is powered by battery, ripple voltage will be produce by the fluctuation of the load. In fact, even the best reference voltage source device has ripples in its output voltage. The ripple voltage generated by the rectification will cause errors in the measured DC voltage and instability of the test power supply. Therefore, in the factory and acceptance test of DC high-voltage test equipment, the voltage ripple coefficient must be measured. According to the rules, the ripple coefficient S of DC voltage cannot be greater than 3%.
