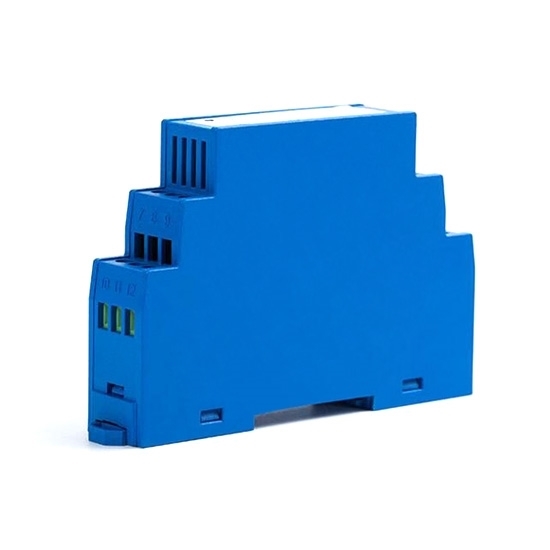

DC voltage sensor has measuring range of 10mV/50mV/75mV/5V/50V/150V/200V/300V/400V/500V/750V to 1000V.

Specification:

DC voltage sensor 10mV to 1000V dimensional drawing (unit: mm):

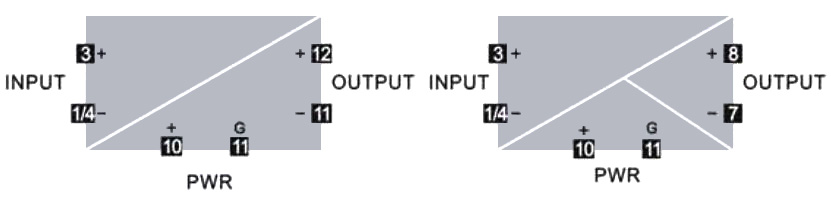

DC voltage sensor 10mV to 1000V wiring diagram:
(The left diagram is for isolation between input and output, the right diagram is for isolation between input, output and power supply. 1: U≤600V, 4: U＞600V)

Tips: What is the effect of voltage sensor?
A voltage sensor is a sensor that can sense the measured voltage and convert it into a usable output signal. In various automatic detection and control systems, it is often necessary to track and acquire high-speed changing AC and DC voltage signals, and perform spectrum analysis on more complex voltage waveforms. This type of signal may be a strong voltage such as a high voltage or a large current, or it may be a weak current with a poor load capacity or a signal with small amplitude. In these cases, it is necessary to use appropriate voltage sensors to collect voltage signals that cannot be directly measured or mismatched, so as to obtain standardized and electrically isolated voltage signals.
