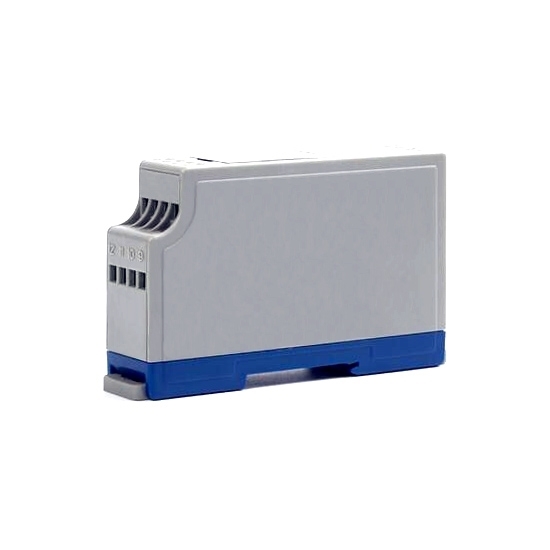

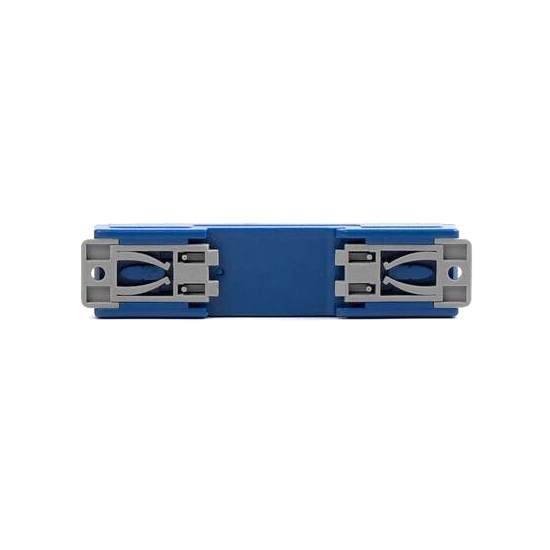

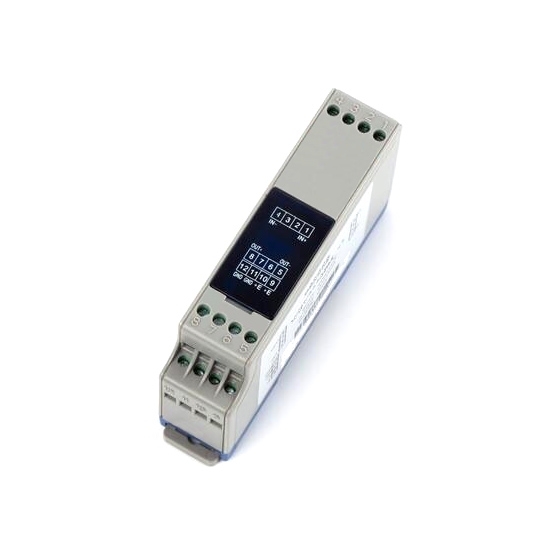

AC Voltage Sensor, Range 10V to 1000V, Power Supply DC 12V/24V/36V

AC voltage sensor has measuring range of AC 10V/50V/100V/200V/300V/500V/800V to 1000V.

Specification:

Voltage sensor AC 10V to 1000V dimensional drawing (unit: mm):

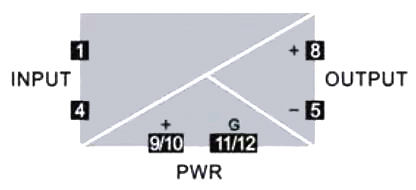

Voltage sensor AC 10V to 1000V wiring diagram:

Tips: How to choose a voltage sensor?
In the voltage measurement, the appropriate voltage sensor should be selected according to the specific situation. The basic principles of voltage sensor selection are:

1. The range of the measured voltage is an important basis for selecting a voltage sensor, so there must be a wide enough voltage measurement range.
2. Confirm the output signal and power supply of the voltage transducer.
3. The response time is fast enough, especially for overload protection, the response time of the voltage sensor must be fast enough.
4. The voltage sensor should have a wide enough frequency range and high enough measurement accuracy. If the frequency exceeds the measurement range, waveform distortion will occur in actual use.
5. The voltage transducer has sufficiently high input impedance. The input resistance of the voltage sensor is the additional load of the circuit under test. In order to reduce the impact of the access of the measurement circuit on the circuit under test, it is required to have higher input impedance.
6. Confirm whether the voltage sensor isolation level is met environmental requirements, the isolation voltage is high enough, and the safety factor reaches the standard.
7. The voltage sensor should have high anti-interference ability, because the measured voltage often contains some components that do not need to be measured, such as noise interference.
