Beam Load Cell, 10kg/20kg/30kg/50kg/100kg/200kg/500kg to 1000kg

$126.98

Beam load cell can bear both tension and pressure. It is a cantilever beam load cell with bellows. Beam load cell has good a

SKU: CHN-LC-B01

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Beam load cells have capacity range from 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg to 1000kg. Load cell capacity can be customized according to customer requirements.
After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification:

Model	CHN-S-LCB-DYBW-106
Weight	0.5~1.5kg
Capacity range *	10kg~1000kg
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.05mV/V
Creep	±0.03%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-40℃~+80℃
Input impedance	352±10Ω
Output impedance	350±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Overload limit	200%F.S
Bridge voltage (excitation voltage)	DC 5-10V
Material	Alloy steel (filled with inert gas)
Protection class	IP68
Cable length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

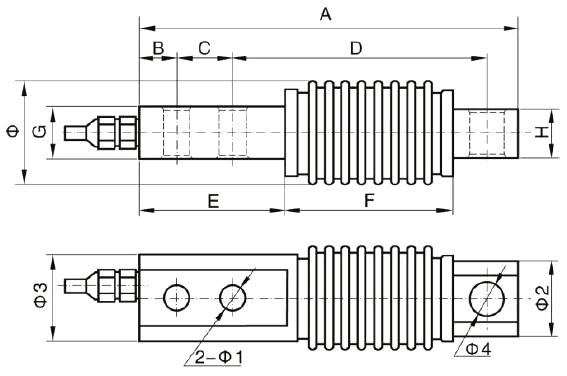

Dimension:

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H	Φ	Φ1	Φ2	Φ3	Φ4
10~200kg	123	13	18	82	45	59	22	20	45	8.5	27	32	11
300~1000kg	210	15	40	133	93	64	34	25	60	13	35	50	14

Tips: Beam load cell with bellows vs single point load cell

Structure: Both of them are beam load cells. The difference is that the beam load cell with bellows is a cantilever beam structure and the single point load cell is a parallel beam structure.
Application: Using for the platform scale or hopper scale, beam load cells with bellows are used to combine into a group of four or three units. Single point load cell generally uses only one in the middle of a pricing scale or a human scale. The single point load cell is calibrated for angular differences before leaving the factory.
Operating environment: The beam load cell with bellows can be used for both static and dynamic weighing, and the unique bellows seal allows it to be used in very harsh weighing environments. The single point load cell can only be used for static weighing and should be away from harsh environment. But its impact resistance and stability are good.
