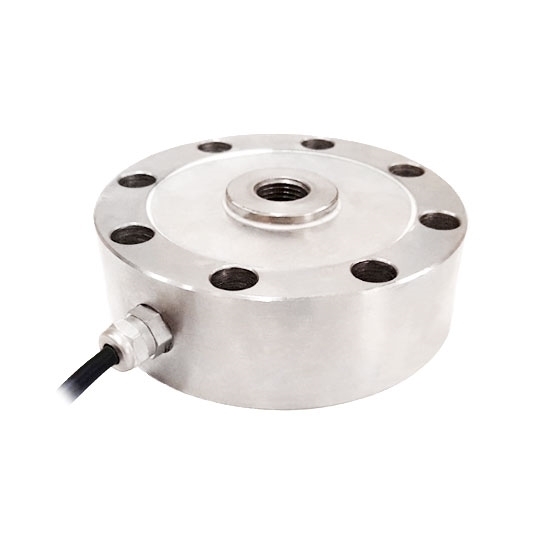

Model	CHN-LCST-TJH-4B
Shipping weight	1.5~60kg
Capacity range *	500 kg~200 ton
Accuracy	0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.05%F.S/10℃
Temperature effect on output	±0.05%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	380±10Ω or 750±15Ω
Output impedance	350±3Ω or 700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 5~10V
Response time	3-4ms
Material	Alloy steel or stainless steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

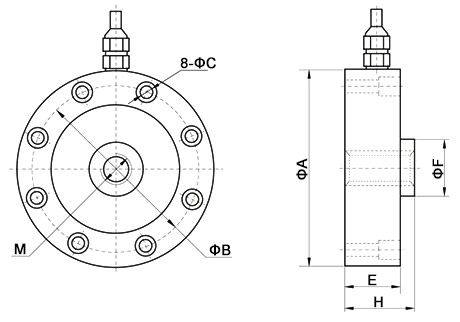

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	ΦF	M	H	E
500kg~7 ton	105	88.9	6.5	32	M16*1.5	37	34
10~25 ton	125	101.6	8.5	39	M32*1.5	52	48
30~50 ton	145	116.8	10.5	50	M40*1.5	58	54
60~100 ton	205	162	12.5	80	M60*2	85	78
200 ton	296	245	22	136	M90*3	105	100

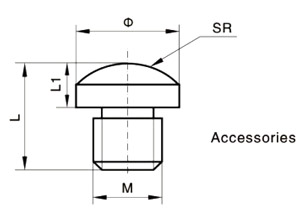

Capacity	Compression head dimension (mm)
Capacity	Φ	L1	L	M	SR
500kg~7 ton	31	13	28	M16*1.5	80
10~25 ton	38	24	51	M32*1.5	120
30~50 ton	50	32	62	M40*1.5	200
60~100 ton	80	42	80	M60*2	280

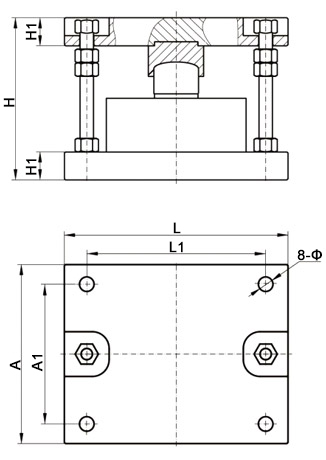

Capacity	Dimension (mm)
Capacity	L	L1	A	A1	H	H1	Φ
500kg~7 ton	160	135	115	90	100	20	11
10~25 ton	200	160	160	125	145	25	13
30~50 ton	240	200	180	135	175	30	17
60~100 ton	300	260	240	200	240	35	17
