Model	CHN-LCST-TJH-4A
Shipping weight	1.5~31kg
Capacity range *	300 kg~100 ton
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.03%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.03%F.S/10℃
Temperature effect on output	±0.03%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	380±10Ω or 750±15Ω
Output impedance	350±3Ω or 700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel or stainless steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

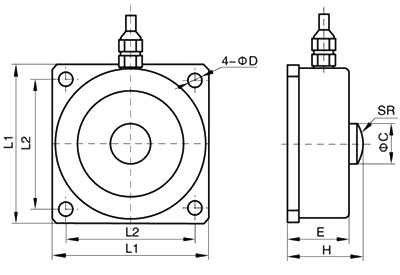

Capacity	Dimension (mm)
Capacity	L1	L2	ΦC	ΦD	H	E	SR
300~1000kg	74	62	16	6.5	41	33	52
2~7ton	90	73	20	8.5	53.5	44	70
10~25 ton	116	96	30	11	82	70	91
30~50 ton	132	108	38	13	97	85	120
100 ton	240	190	76	26	125	112	200
