Model	CHN-LCBU-DYHW-116
Shipping weight	1.5kg
Capacity range *	5kg~5 ton
Accuracy	0.3%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0mV/V
Creep	±0.05%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.1%F.S/10℃
Temperature effect on output	±0.1%F.S/10℃
Operating temperature	-20℃~+80℃
Input impedance	700Ω
Output impedance	1000Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 5-10V
Material	Alloy steel or stainless steel
Protection class	IP66
Cable length	2m

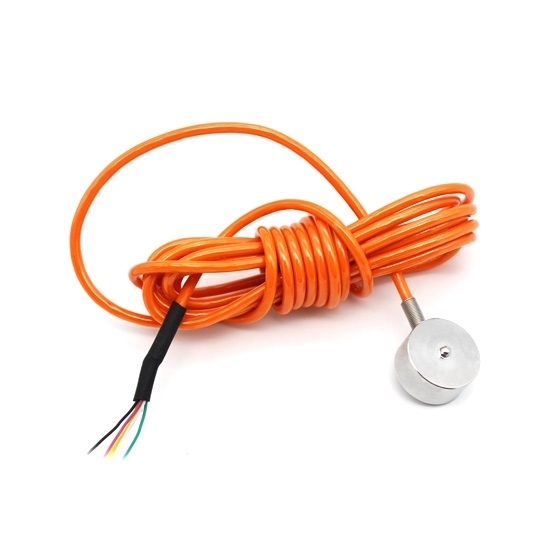

Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

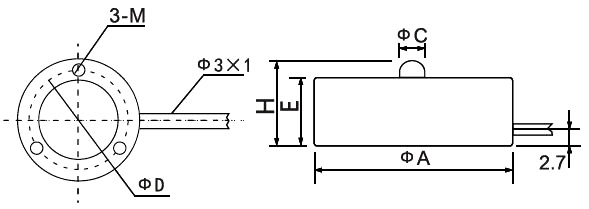

Capacity	Dimension (mm)
Capacity	ΦA	ΦC	ΦD	H	E	M	H1	SR
5~200kg	20	2.5	15.5	12	10	M3	2.7	2
300~1000kg	26	5	18.5	15	11.5	M4	3.5	6
2 ton	30	6	20	18	14	M4	3.5	15
3-5 ton	37.7	10.8	31	15.5	14	M2.5	3.5	50
