Model	CHN-LCST-TJL-8
Shipping weight	1.5~4kg
Capacity range *	10 ton~200 ton
Accuracy	0.05~0.1%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.5±0.1mV/V
Creep	±0.05%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.05%F.S/10℃
Temperature effect on output	±0.05%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	380±10Ω or 750±15Ω
Output impedance	350±3Ω or 700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	6m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

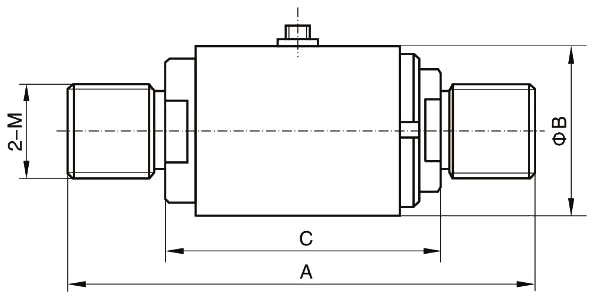

Capacity	Dimension (mm)
Capacity	A	ΦB	C	M
10~20 ton	214	82~86	124	M42*4.5
30~50 ton	276	106	157	M56*5.5
70~100 ton	380	142	180	M76*4
150~200 ton	500	175	220	M130*6
