Model	CHN-LCST-TJL-7
Shipping weight	1.5~50kg
Capacity range *	2 ton~100 ton
Accuracy	0.03~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	380±10Ω
Output impedance	350±3Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	3m (＜5ton), 6m (≥5ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
Certification	CE

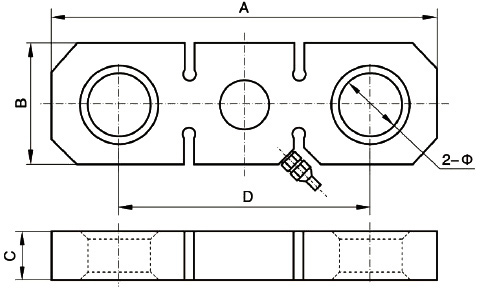

Capacity	Dimension (mm)
Capacity	A	B	C	D	Ф
2~3 ton	200	65	25	130	32
5 ton	230	70	30	150	36
7~10 ton	300	90	38	200	45
15~20 ton	330	110	42	205	60
30 ton	350	126	50	216	60
50~70 ton	500	180	60	320	72
