Model	CHN-LCC-TJH-14
Shipping weight	1.3~6.3kg
Capacity range *	300 kg~30 ton
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.03~±0.05%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.03%F.S/10℃
Temperature effect on output	±0.03%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	380±10Ω, 750±15Ω
Output impedance	350±3Ω, 700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Stainless steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

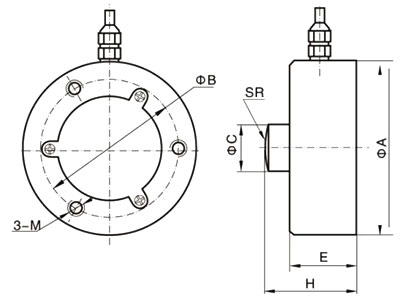

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	H	E	M	SR
300~1000kg	78	64	15	40	32	M6	40
2~10 ton	82	66	22	44	32	M8	50
15~30 ton	127	90	25	70	62	M10	60
