Model	CHN-LCC-DYMH-106
Weight	0.1kg
Capacity range *	3kg~500kg
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.0±20%mV/V
Creep	±0.1%F.S/30min
Zero output	±5%F.S
Temperature effect on zero	±0.05%F.S/10℃
Temperature effect on output	±0.05%F.S/10℃
Temperature compensation range	-10℃~+60℃
Operating temperature	-20℃~+80℃
Input impedance	350±30Ω
Output impedance	350±5Ω
Insulation resistance	≥2000MΩ
Safety overload	120%F.S
Overload limit	200%F.S
Bridge voltage (excitation voltage)	DC 5-15V
Material	Stainless steel
Protection class	IP66
Cable length	2m (Φ2mm)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

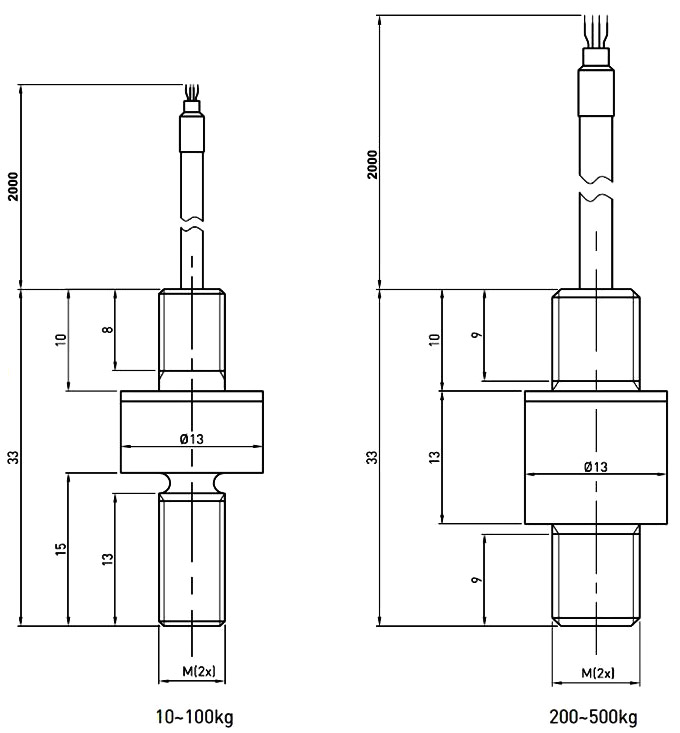

Capacity	M
3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg	M6 (standard thread pitch: 1mm)
200kg, 300kg, 400kg, 500kg	M8 (standard thread pitch: 1.25mm)
