Tension and Compression Load Cell, 1 kg - 500 kg

Tension and compression load cells have capacity range from 1kg, 5kg, 20kg, 30kg, 100kg, 200kg, 250kg, 300kg to 500kg. Load cell capacity can be customized according to customer requirements.
After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification:

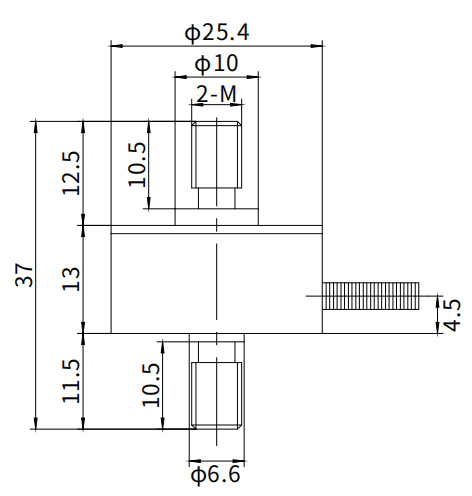

Dimension (unit: mm):

Lead wire=1500mm

Tips: Load cell wiring
Generally, it is divided into four-wire and six-wire. The requirements of six-wire connection is the secondary instrument for load cell has feedback input interface. According to the different instruments, the corresponding short-line should be connected. The ordinary sensors employ the six-wire connection. While load cells employ four-wire connection. The wiring method is connecting sig+ to sig+, sig- to sig-, instrument sen+ and exe+ to load cell exc+, instrument sen- and exe- to load cell exc-.
