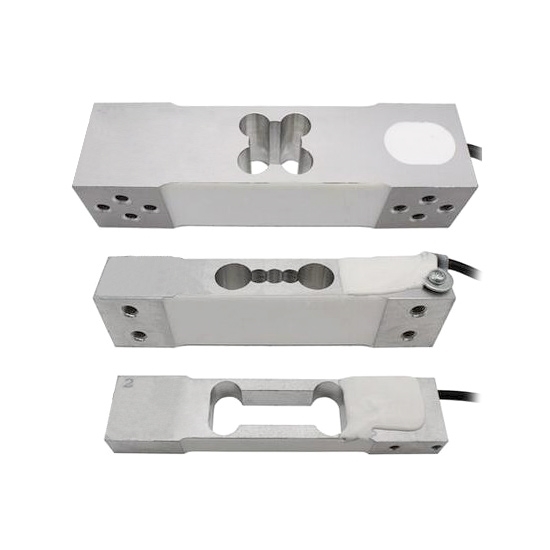

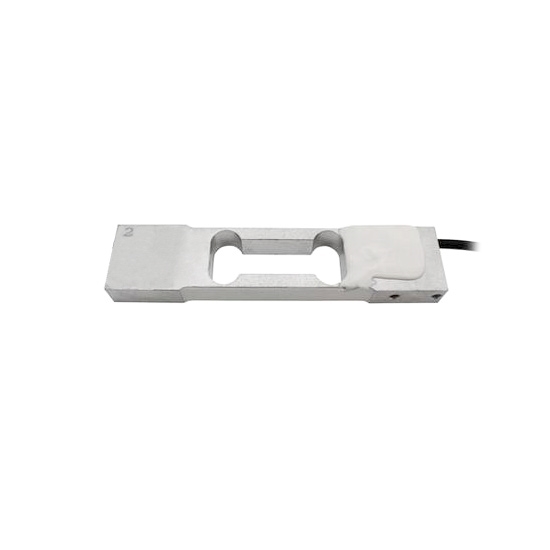

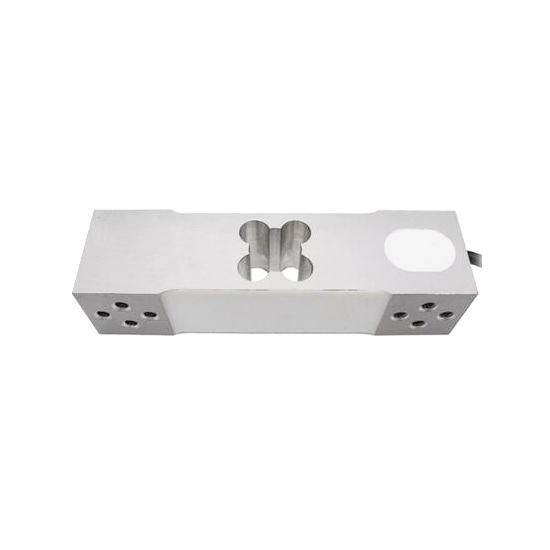

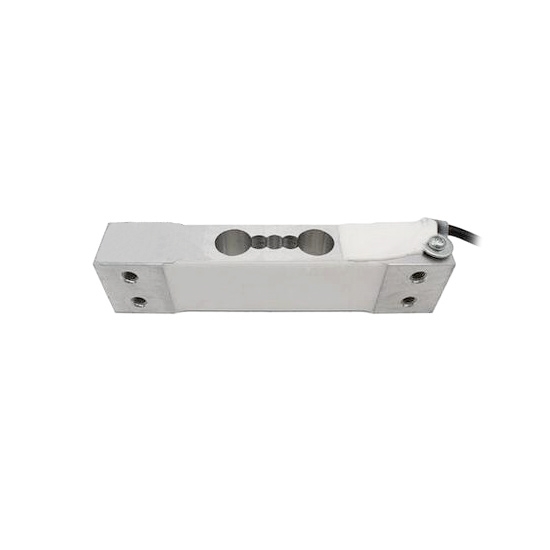

Single Point Load Cell, 300g/1kg/3kg/10kg/60kg/100kg/200kg to 500kg

Single point load cells have capacity range from 300g, 600kg, 1kg, 2kg, 5kg, 10kg, 40kg, 100kg to 500kg. Load cell capacity can be customized according to customer requirements.
After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification:

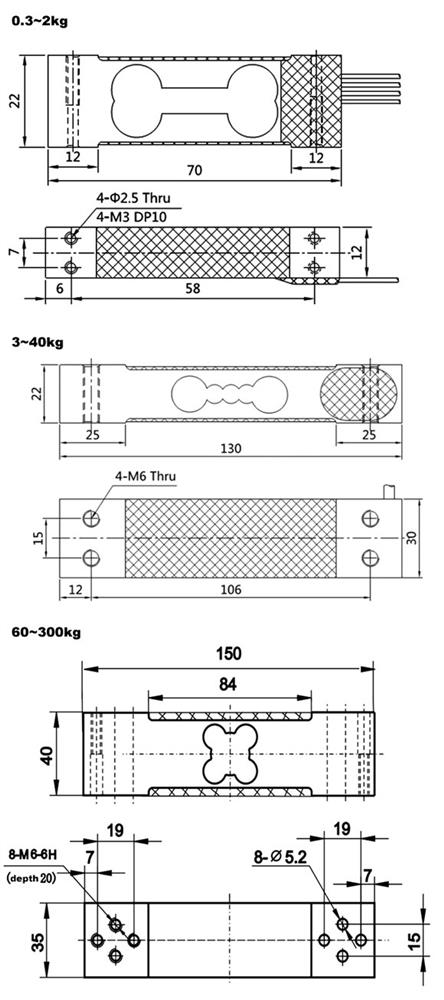

Dimension (unit: mm):

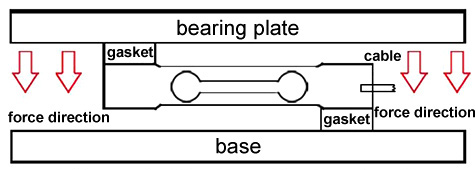

Single point load cell mounting diagram:

Tips: Single point parallel beam load cell features
In order to keep up with the development speed of the electronic pricing scale, the single point load cell should not only has the characteristics of high sensitivity and high rigidity, but also meet the requirements of short positioning time, strong anti-interference ability, good stability, etc. In addition, load cell is applicable to change for different capacities of electronic pricing scales. The ATO parallel beam load cell has the advantages of reducing the swing of the scale pan, short positioning time, stable and fast reading, and low-capacity anti-overload. In the future, parallel beam load cells will be more widely used in small electronic scales such as commercial or household electronic human health scales and electronic kitchen scales.
