Model	BAW-165
Rated power	4hp (3kW)
Rated voltage	380V
Phase	3 phase
Accessories	Clamp + gasket + quick connector/ Clamp + gasket + sanitary hose joint/ Union
Flow rate	15t/ h
Lift (water column)	24m
Inlet/ outlet size	51mm
Outer size	L580mmW270H400m
Weight	45kg
Warranty	12 months

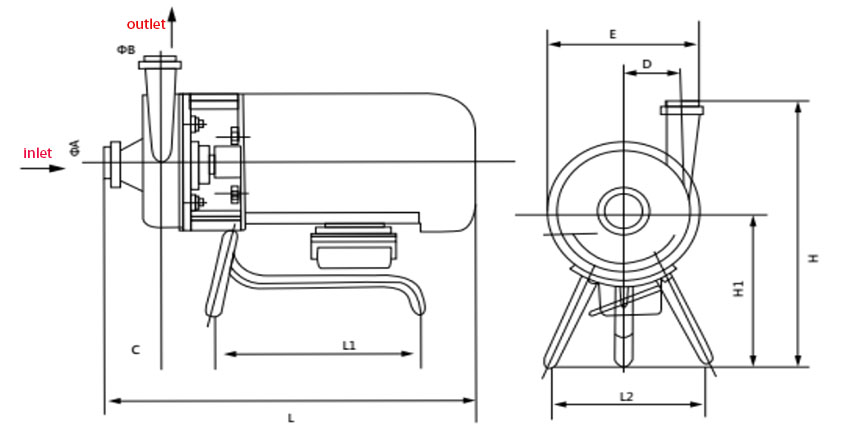

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-165	51	51	95	75	250	600	400	220	450	255
