Model	BAW-150-1
Rated power	3hp (2kW)
Rated voltage	220V/ 380V
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	10t/ h
Lift (water column)	24m
Inlet/ outlet size	51/ 38mm
Outer size	L520mmW260H370m
Weight	38kg
Warranty	12 months

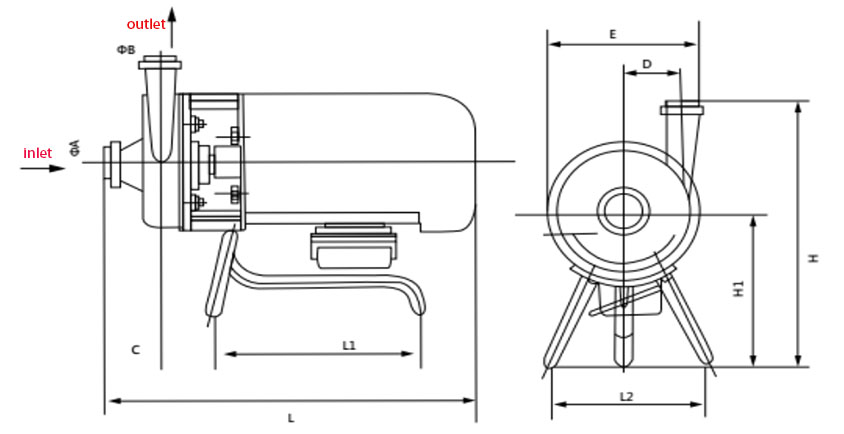

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-150	51	38	85	60	220	530	350	190	380	220
