Model	BAW-120
Rated power	1hp (0.75kW)
Rated voltage	220V/ 380V
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	3t/ h
Lift (water column)	18m
Inlet/ outlet size	38/ 32mm
Outer size	L420mmW220H320m
Weight	22kg
Warranty	12 months

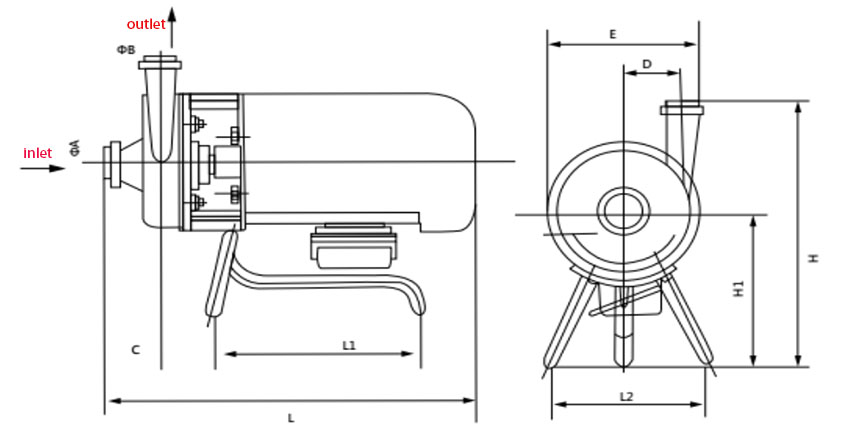

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-120	38	32	55	42	190	450	300	170	310	190
