Model	BAW-150
Rated power	2hp (1.5kW)
Rated voltage	220V/ 380V
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	5t/ h
Lift (water column)	24m
Inlet/ outlet size	38mm
Outer size	L500mmW260H370m
Weight	35kg
Warranty	12 months

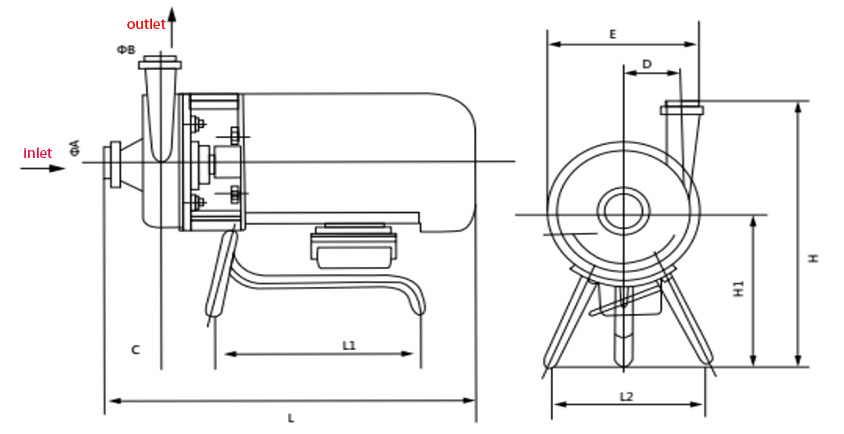

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-150	38	38	85	50	200	510	350	180	355	200
