Handheld peristaltic pump is driven by air explosion-proof motor, small size, portable, specially designed for field sampling. High flow peristaltic pump with 1200 GPD (3300mL/min) maximum flow rate, powered by DC 10.8V battery. Hose inner diameter 4.8/6.4/7.9/9.6mm for selection. Matched with other specifications of tubing and pump heads can get different flow rate.

Specification

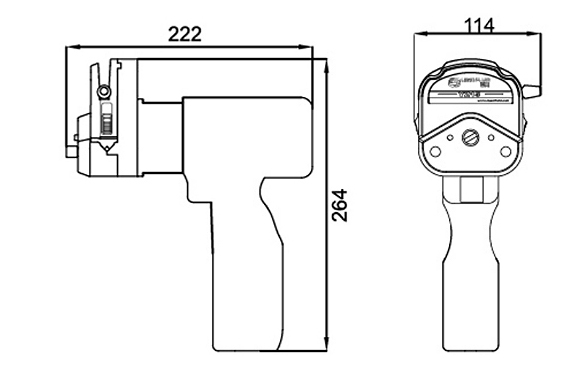

10V Handheld Peristaltic Pump Dimensions Drawing (Unit: mm)

10V Handheld Peristaltic Pump Hose Specification (Unit: mm)

Tips: Application of handheld peristaltic pump in sewage sampling.

In the entire sewage treatment process, a comprehensive inspection and statistics of the influent water quality is the key point in the control of sewage treatment plant. In some small and medium-sized sewage plants, the quality of influent water is affected by the number of people in collection area of the pipe network, the amount of water collected, etc., and it is greatly affected by the abnormal water quality from the outside world.

When environmental monitoring personnel come to the site for sampling, they are often annoyed by the lack of power at the site. When sampling, it is necessary to collect high specific gravity and high viscosity liquid, solid particle suspension liquid, layered sampling, no cross-infection, easy to carry, etc.

ATO handheld peristaltic pump can be applied to water quality sampling under various environmental conditions. When using the handheld peristaltic pump, the sewage water sample only flows in the tubing. The liquid delivered by the peristaltic pump only touches the pump hose and not the pump body, so there will be no jamming. A handheld peristaltic pump can be used continuously for a long time, and the same pump can be used for sampling of different sewage by simply replacing the pump hose. The serious blockage of the water inlet of the sampling device is a frequent problem. ATO handheld peristaltic pump has a large flow rate range and is not prone to blockage in actual use. If it is blocked or the hose is contaminated or corroded, the hose can be replaced directly, which is simple and convenient.
