Home > Pumps > Peristaltic Pump

Send Inquiry

12500 GPD Explosion-Proof Peristaltic Pump

$6984.92

High flow industrial peristaltic pump with explosion-proof pump head, competitive price. Flow rate range 640~33000 mL/min (12

SKU: CHN-IPP-12500E

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Buy explosion-proof peristaltic pump from reliable manufacturer at good price. Maximum flow rate 12500 GPD (33000 mL/min), speed range of 30～350 rpm, matched hose inner diameter 12.7/25.4/19/9.5mm. Explosion-proof grade of the peristaltic metering pump is ExdIIBT4, protection IP55, suitable for complex industrial applications.

Specification

Model	CHN-FP300S-A3
Water Flow Rate	mL/min	640～33000
	GPD (gallon/day)	240~12500
Speed Range	30～350 rpm
Speed Accuracy Error	＜±3%
Speed Resolution	0.1Hz (0.77 rpm)
Power Supply	3-phase 380V, 50Hz/60Hz 220V customizable
Rated Power	3700W
Speed Control	VFD stepless speed regulation (standard configuration VFD motor without connecting cable)
Control Functions	Start/stop, forward/reverse, speed regulation, communication, etc.
Working Environment	Ambient temperature 0～40℃, relative humidity <80%
Explosion-Proof Grade	ExdIIBT4
Protection Grade	IP55 (only for motor)
Weight	49kg

Features

Explosion-proof peristaltic pump is driven by AC gear explosion-proof motor, split design, and the driver is separated from the frequency converter.
Explosion-proof peristaltic pump must be used in conjunction with the frequency converter. It has the functions such as start/stop, forward/reverse, speed regulation, and communication.
Planetary reduction mechanism design. Stepless variable speed, adjustment resolution 0.1Hz.
Explosion-proof peristaltic pump has IP55 high protection grade, suitable for complex industrial environment.
If the explosion-proof peristaltic pump needs to be placed in a dangerous industrial environment, an explosion-proof converter should be selected.

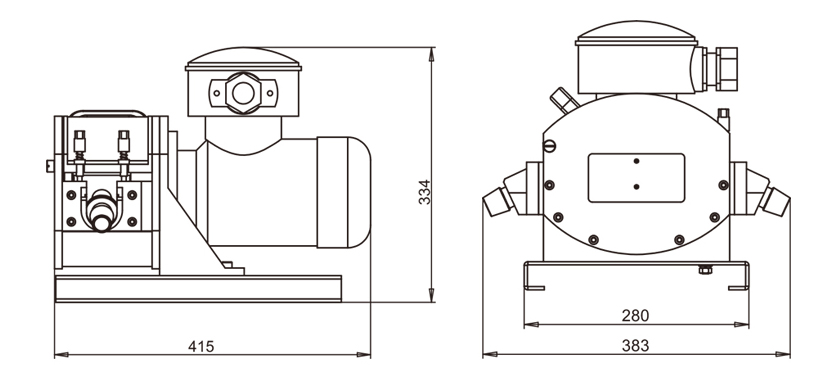

Explosion-Proof Peristaltic Pump Dimensions Drawing (Unit: mm)

Explosion-Proof Peristaltic Pump Hose Specification (Unit: mm)

Model	Inner Diameter	Outer Diameter	Wall Thickness
88#	12.7	22.3	4.8
92#	25.4	35	4.8
191#	19	28.6	4.8
193#	9.5	19.1	4.8

Tips: Pipeline configuration and precautions of explosion-proof peristaltic pump.

The reason why the explosion-proof peristaltic pump can transport all kinds of liquids and various foods with abrasive, corrosive, and oxygen-sensitive characteristics is mainly because the peristaltic pump has a superior pipeline configuration.

The suction hose of explosion-proof peristaltic pump is 1 to 3 levels larger than the inlet diameter or equal.
In order to facilitate maintenance and use, the suction tubing should be equipped with a shut-off valve and be as close as possible to the pump inlet, with the same diameter as the tubing diameter.
To protect the explosion-proof peristaltic pump from being damaged, a filter is installed immediately downstream of the pump suction pipeline and the shut-off valve, usually a T-type filter.
A safety valve is set between the outlet of explosion-proof peristaltic pump and the first valve.
The outlet of explosion-proof peristaltic pump is equipped with a pressure gauge, which is located on the straight pipe section between the pump and the first valve at the outlet.
On the outlet pipeline of explosion-proof peristaltic pump, set a drain valve between the first valve and the pump.
