The industrial peristaltic pump has dedicated explosion-proof pump head with ExdIIBT4 grade. High flow rate, maximum value 2200 GPD (6000 mL/min), wide variable speed range of 100～600 rpm, applicable tubing size 4.8/6.4/7.9/9.6mm. This explosion-proof peristaltic pump is suitable for high-precision liquid transmission.

Specification

Features

• Explosion-proof peristaltic pump is driven by AC gear explosion-proof motor, split design, and the driver is separated from the frequency converter.
• Explosion-proof peristaltic pump must be used in conjunction with the frequency converter. It has the functions such as start/stop, forward/reverse, speed regulation, and communication.
• Stepless variable speed, adjustment resolution 0.1Hz.
• Explosion-proof peristaltic pump has IP55 high protection grade, suitable for complex industrial environment.
• If the explosion-proof peristaltic pump needs to be placed in a dangerous industrial environment, an explosion-proof converter should be selected.

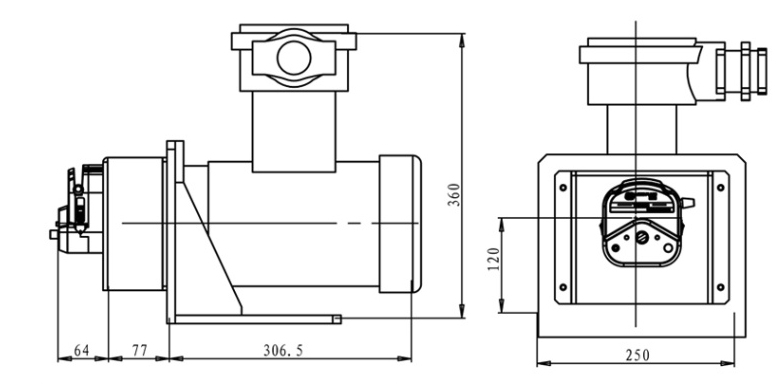

Explosion-Proof Peristaltic Pump Dimensions Drawing (Unit: mm)

Explosion-Proof Peristaltic Pump Hose Specification (Unit: mm)

Tips: Preparations before starting explosion-proof peristaltic pump.

Generally, after purchasing explosion-proof peristaltic pump equipment, what users care about is the degree of mastery of relevant technical data and the cooperation of production processes, which is convenient for users to start-up, debug and use the equipment. Extend the service life of equipment, the explosion-proof peristaltic pump reduces the production cost as much as possible for users, and brings additional production benefits. Therefore, before using the explosion-proof peristaltic pump, users must read the relevant technical information.

After ensuring the stable installation of equipment, it is necessary to check all the lubrication parts of the explosion-proof peristaltic pump, and add gear oil to ensure smooth operation. Then, power on the main control box and install standard wiring. At this time, do not run the explosion-proof peristaltic pump immediately, let it be unloaded for 3~5 minutes to see if there is any abnormal phenomenon such as stuck or bumped. If there is no abnormality, it can be put into production normally. Once the above situation occurs, it is necessary to stop the machine immediately for inspection, and eliminate the fault completely, so as to extend the service life of explosion-proof peristaltic pump.
