Home > Pumps > Peristaltic Pump

Send Inquiry

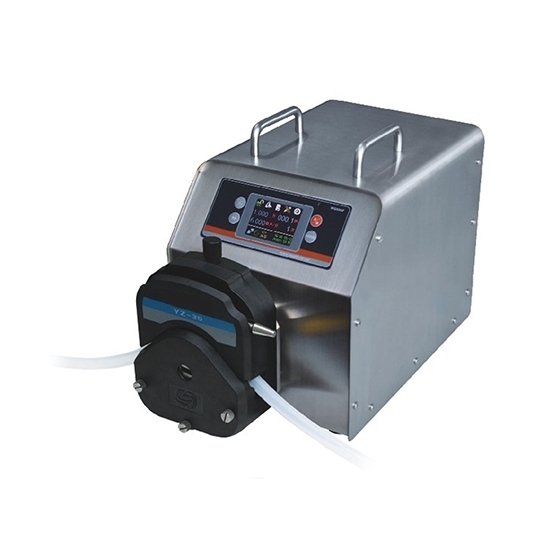

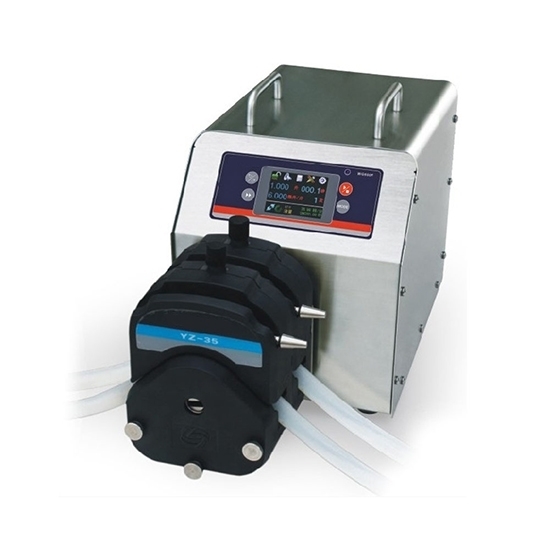

400W 4900 GPD Industrial Peristaltic Pump

$4242.92

Buy 4900 GPD industrial peristaltic pump from reliable manufacturer. Flow rate range 100~13000 mL/min, maximum speed 600 rpm,

SKU: CHN-IPP-49004

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Industrial peristaltic dosing pump for sale, which is driven by 400W brushless DC motor, optional voltage 220V/110V. Maximum flow rate 4900 GPD (13000 mL/min). Supports RS485 communication interface and MODBUS protocol, easy to connect with other control equipment such as computer, man-machine interface, PLC, etc. The industrial metering pump is suitable for precise high-flow transmission and split-charging liquids in industrial sites.

Specification

Model	CHN-WG600F
Water Flow Rate	mL/min	100~13000
	GPD (gallon/day)	38~4900
Speed Range	0.1～600 rpm
Speed Resolution	0.1 rpm
Speed Accuracy Error	＜±0.2%
Working Mode	Flow mode, liquid volume distribution, time distribution, copy distribution
Volume Distribution Range	100mL～9999L
Number of Distribution	1-999 times, 0 is infinite loop
Distribution Interval	0.1-999 seconds/minute/hour
Power Supply	AC 220V ±10%, 50Hz/60Hz AC 110V ±10%, 50Hz/60Hz
Motor Power	＜400W
External Control Interface	External control input level 5V/12V/24V
	External control analog quantity 0-5V/0-10V/4-20mA
External Control Digital Communication Interface	RS485 communication, supports MODBUS protocol
Working Environment	Ambient temperature 0～40℃, relative humidity <80%
Protection Grade	IP31
Weight	15kg

Features

Industrial peristaltic pump is driven by brushless servo motor, with strong power, precise control, and maintenance-free.
Industrial peristaltic pump uses LF-Touch-OS software system. Color LCD display, touch screen plus key operation. Flow display, flow adjustment, cumulative liquid volume display.
Industrial peristaltic pump has 3 working modes: liquid distribution, time distribution, and copy distribution. 5 groups of distribution specifications can be pre-stored in the 3 distribution modes.
Guided flow correction function and infrared remote control function.
Industrial peristaltic pump has super anti-interference characteristics and is suitable for complex power supply environment.
5V, 12V, 24V level input is optional. The external analog quantity controls the flow.

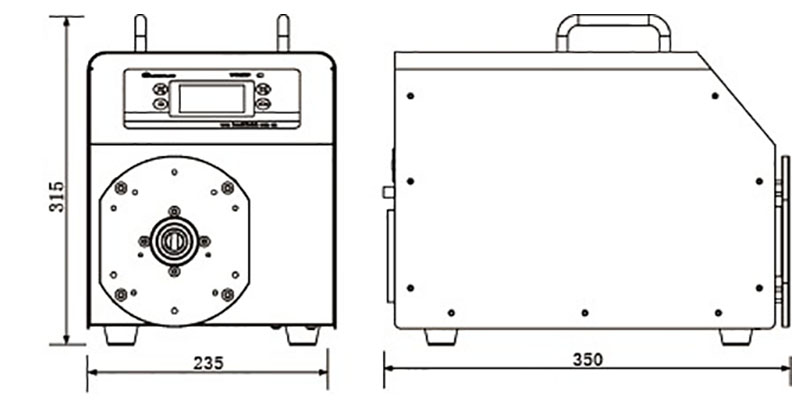

4900 GPD Industrial Peristaltic Pump Dimensions Drawing (Unit: mm)

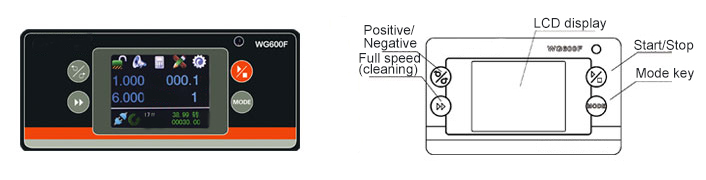

4900 GPD Industrial Peristaltic Pump Panel Details

4900 GPD Industrial Peristaltic Pump Hose Specification (Unit: mm)

Model	Inner Diameter	Outer Diameter	Wall Thickness
73#	9.6	16.2	3.3
82#	12.7	19.3	3.3

Tips: How to determine the flow of industrial peristaltic pump?

Flow rate of the industrial peristaltic pump is usually determined according to the process required by the application. In the case of meeting the process requirements, the median value of requirements is taken. The demand flow value should not be selected too high. Although a high flow can increase the speed of liquid, it is likely to require a larger industrial peristaltic pump to meet it. As a result, the volume of peristaltic pump will increase, the power will increase, and the cost will increase. If the demand flow value is too low, it may take longer to complete the liquid injection, and the efficiency cannot be satisfied.
The demand flow rate shall be affected by related parameters. Such as the loss of flow when the viscosity and specific gravity of liquid are large. Also consider the flow loss caused by the increase in lift, suction and decrease in temperature. According to the amount of loss, an industrial peristaltic pump with a larger flow is appropriately selected. If the relevant specifications are too different from the clean water, it is needs to test them through experiments to get an accurate reference flow rate.
