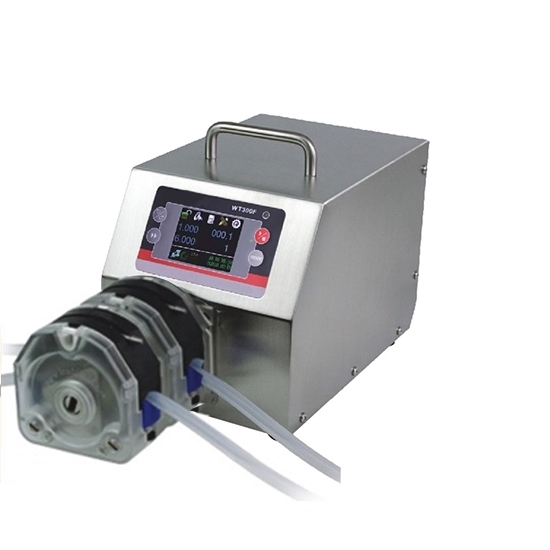

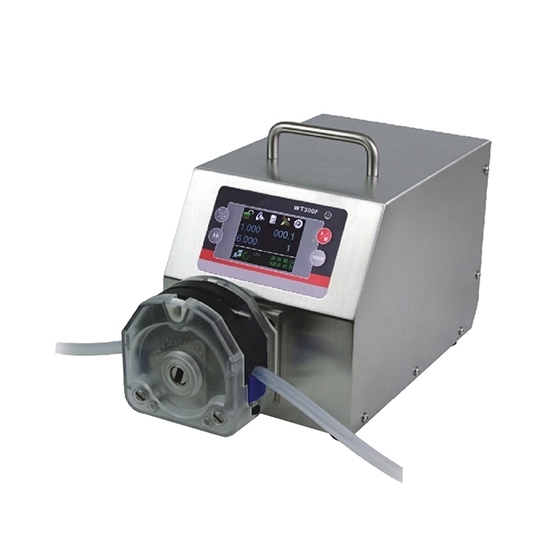

Buy peristaltic dosing pump produced from ideal manufacturer, powered by 200W BLDC motor, rated voltage 180V~264V. Max flow rate 2200 GPD (0.06～6000mL/min), tubing inner diameter 4.8/6.4/7.9/9.6mm. Welcome to contact us to get more tubing and pump heads to meet your needs for liquid transmission and flow control.

Specification

Features

1. Peristaltic dosing pump has a color LCD display, the touch screen cooperates with key operations.
2. Peristaltic dosing pump has 4 working modes: flow mode, liquid volume distribution, time distribution, and copy distribution. 5 groups of allocation parameters can be pre-stored in the first three modes.
3. Peristaltic metering pump has the functions of start/stop, forward/reverse, full speed, speed regulation, state memory, etc., to realize flow display, flow control, and flow accumulation.
4. Peristaltic dosing pump has guided flow correction function and infrared remote control function.
5. Intelligent temperature control fan minimizes noise.
6. External control signal controls start and stop, positive and negative, time slipt-charging, optocoupler isolation, external control analog quantity adjusts speed.
7. RS485 communication, support MODBUS protocol, convenient to connect with various control equipment.
8. Peristaltic metering pump has super anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
9. The shell is made of 304 stainless steel, which is easy to clean and effectively prevents the corrosion of various acid, alkali salts and organic solvents.

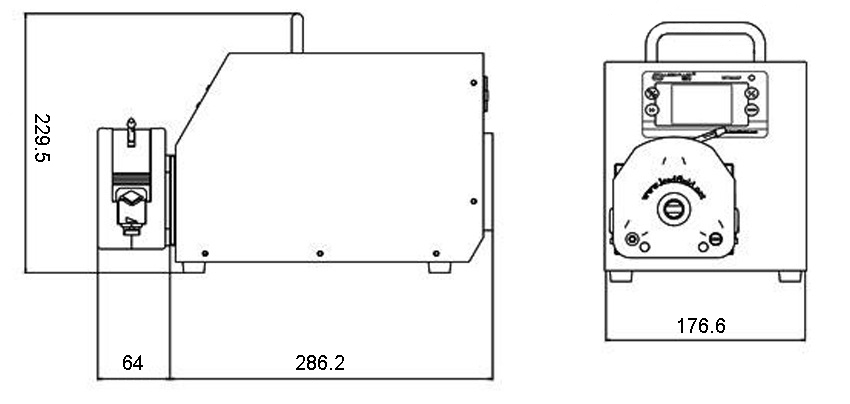

2200 GPD Peristaltic Dosing Pump Overall Dimensions Drawing (Unit: mm)

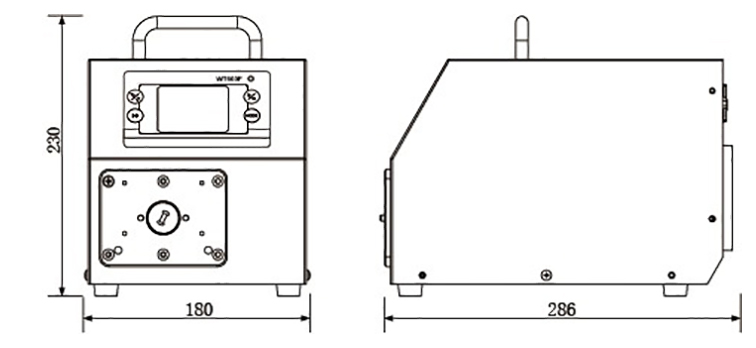

2200 GPD Peristaltic Dosing Pump Driver Dimensions Drawing (Unit: mm)

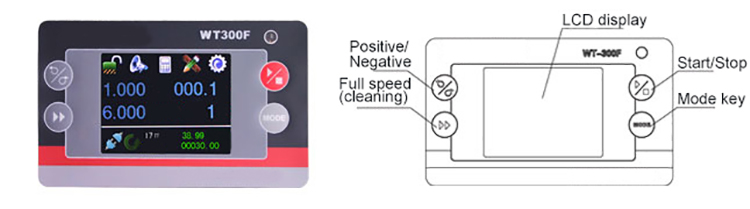

2200 GPD Peristaltic Dosing Pump Panel Details

2200 GPD Peristaltic Dosing Pump Hose Specification (Unit: mm)

Tips: Peristaltic dosing pump flow range and maximum flow rate.

1. Flow rate of peristaltic dosing pump is usually measured with clean water within 0.5 meters of suction and 0.5 meters of lift.
2. The minimum flow and maximum flow of common peristaltic dosing pumps are usually distributed in the range of 0.001 to 30L/min. ATO peristaltic dosing pump has a variety of different flow ranges, which can meet various application requirements in the range of 0.001ml/min～33L/min. Some peristaltic dosing pumps can also stack the pump heads in series, and combine the two inlets and outlets of the two pump heads into one inlet and outlet through a Y-shaped three-way joint, to achieve the effect of doubling the flow rate.
3. Normally, speed range corresponding to the flow rate of peristaltic dosing pump is 0～600 rpm. There are a few peristaltic pump products whose speed will be higher, but the speed of conventional peristaltic pumps is limited to 600 rpm. If the speed is too high, the hose will not have time to rebound. As the speed increases, the flow rate will not increase significantly. If the speed is too high, the hose will wear faster.
4. Different types and specifications of peristaltic dosing pumps can obtain different flow ranges by assembling different hoses and setting different speeds. The larger the inner diameter of hose, the greater the flow rate of the peristaltic pump.
