Home > Pumps > Peristaltic Pump

Send Inquiry

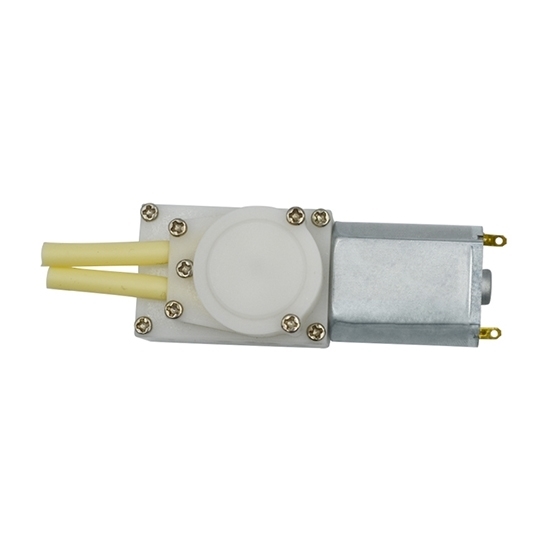

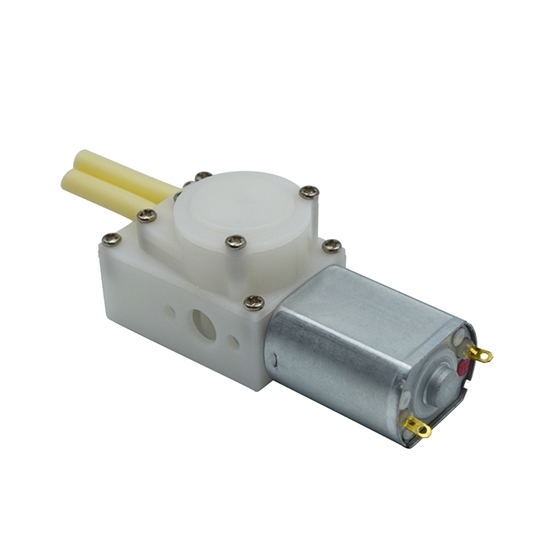

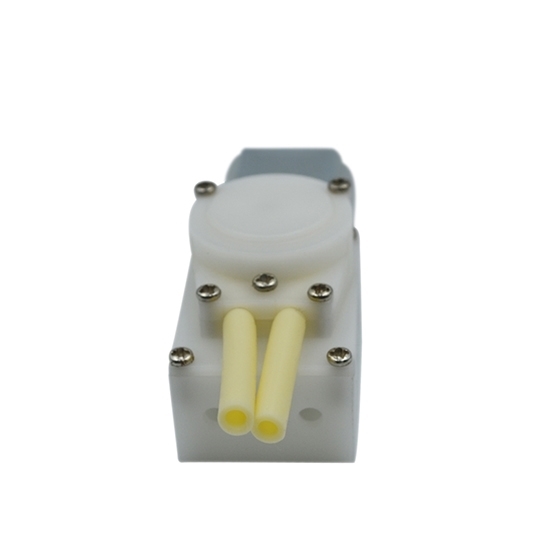

30mL/min DC 3V/6V/12V Micro Peristaltic Pump

$55.69

Affordable price micro peristaltic pump powered by 3V/6V/12V DC motor. Flow rate 15~30mL/min (11.4 gallon per day), maximum p

SKU: CHN-PDP-M30

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Micro peristaltic dosing pump for sale, working voltage DC 3V/6V/12V DC for selection, water flow rate of 11.4GPD (15~30mL/min), hose diameter 2.4mm. Miniature peristaltic pump used in liquid metering and transmission, applications include NPWT, sphygmomanometer, medical ventilator, infusion pump, biology laboratory, water dispenser, car air purifier, etc.

Specification

Model	CHN-MPP40
Water Flow Rate	mL/min	15~30
	GPD (gallon/day)	5.71~11.41
Rated Voltage	DC 3V, 6V, 12V
Power	＜1W
Tubing Size	Outer Diameter	4mm
	Inner Diameter	2.4mm
Overall Size	5724.122mm
Weight	38g
Rated Life	＞300h

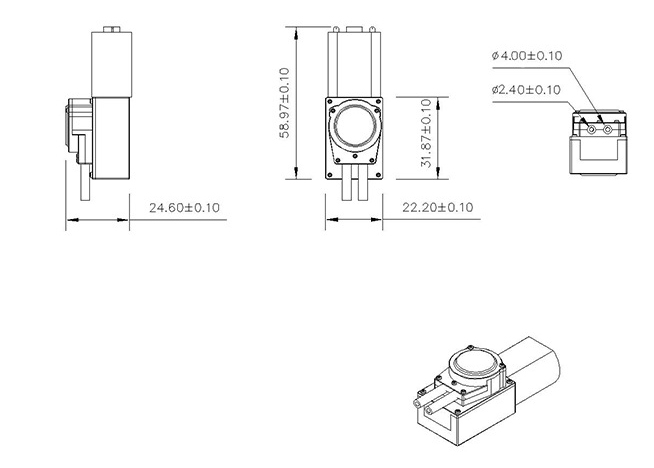

30mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

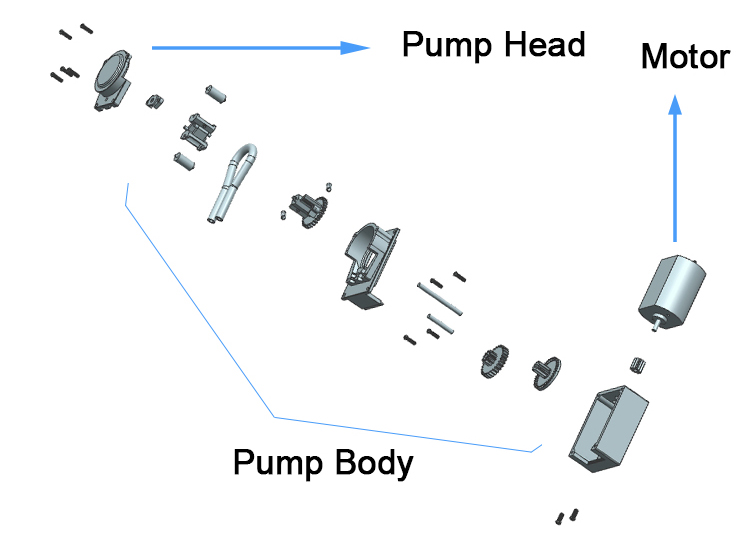

30mL/min Micro Peristaltic Pump Structure Diagram

Micro Peristaltic Pump Applications
