Home > Pumps > Peristaltic Pump

Send Inquiry

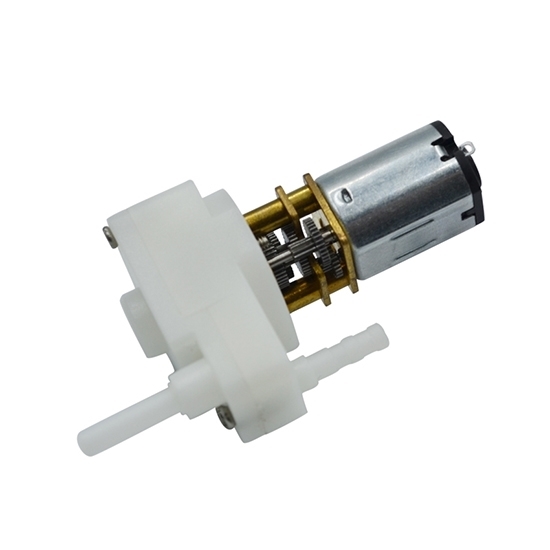

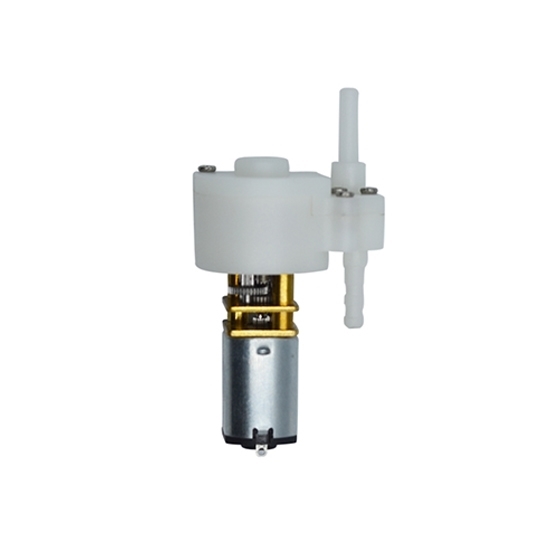

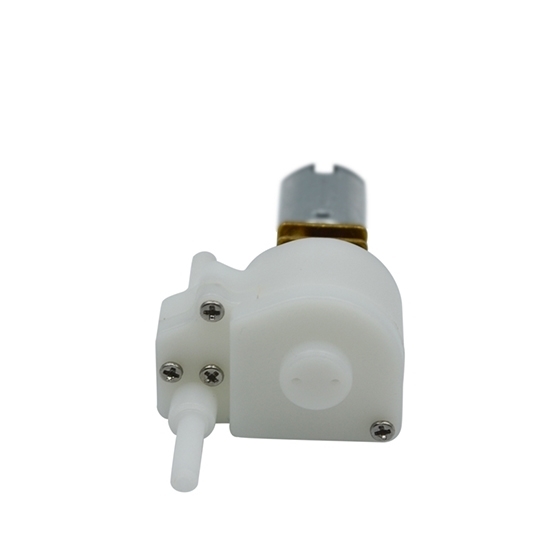

8mL/min DC 3.7V/5V/6V Micro Peristaltic Pump

$49.54

Buy professional micro peristaltic pump at good price. Operating voltage DC 3V/3.7V/5V/6V, flow rate 2~8mL/min (3GPD), maximu

SKU: CHN-PDP-M8

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Micro peristaltic metering pump has maximum flow rate of 3GPD (2~8mL/min), powered by 3V/3.7V/5V/6V DC motor, tubing diameter 1.8mm. Miniature peristaltic metering pump used in liquid transmission including weak acid, weak base, clean water, oil, etc.

Specification

Model	CHN-MPP30
Water Flow Rate	mL/min	2~8
	GPD (gallon/day)	0.76~3.04
Rated Voltage	DC 3V, 3.7V, 5V, 6V
Power	＜0.5W
Tubing Size	Outer Diameter	3.5mm
	Inner Diameter	1.8mm
Overall Size	182640mm
Weight	15g
Rated Life	＞300h

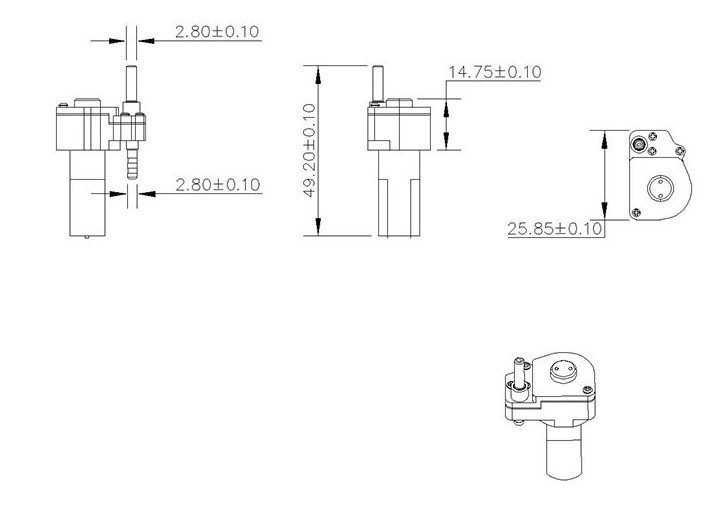

8mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

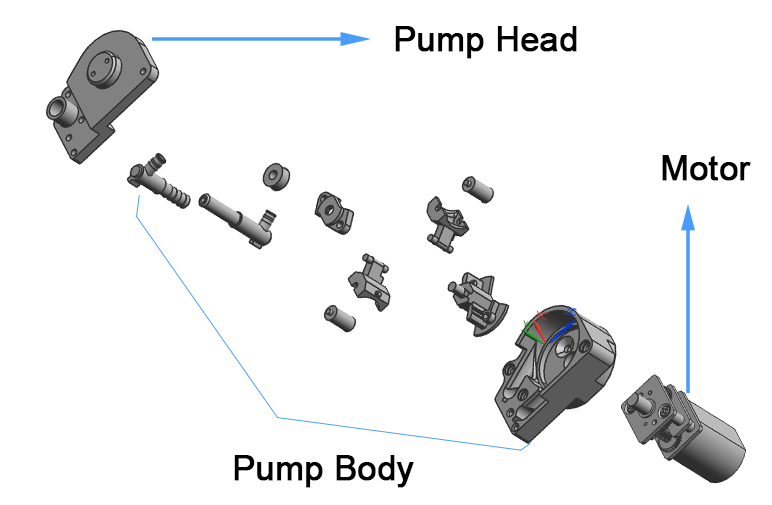

8mL/min Micro Peristaltic Pump Structure Diagram

Micro Peristaltic Pump Applications

Tips: Precautions for the using micro peristaltic pump.

After the pump hose has been used for about 220 hours, the hose can be turned over (that is, 90° rotation). Because one side of the hose is squeezed for a long time, it is easy to cause one side to be damaged, and turning over can increase the service life.
Storage period of the pump tubing shall not exceed one year (long-term non-use will cause aging).
Lubricate the rollers of micro peristaltic pump every 6 months (special lubricating oil is required).
After using the micro peristaltic pump for a long time, if abnormal noise occurs, it can be disassembled for inspection. Check if this is caused by bearing wear or damage, if not, please contact the manufacturer.
