Home > Pumps > Peristaltic Pump

Send Inquiry

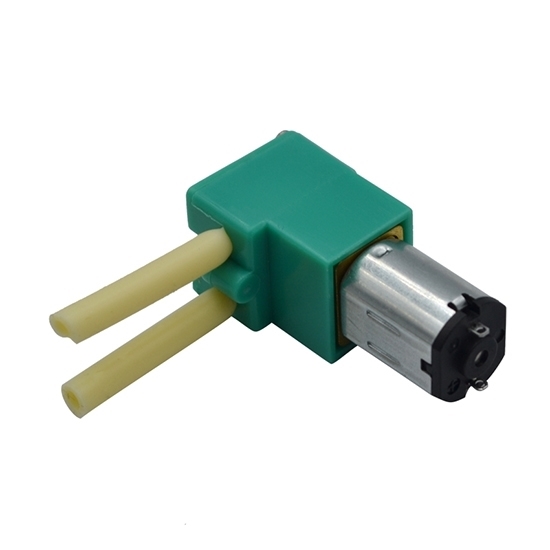

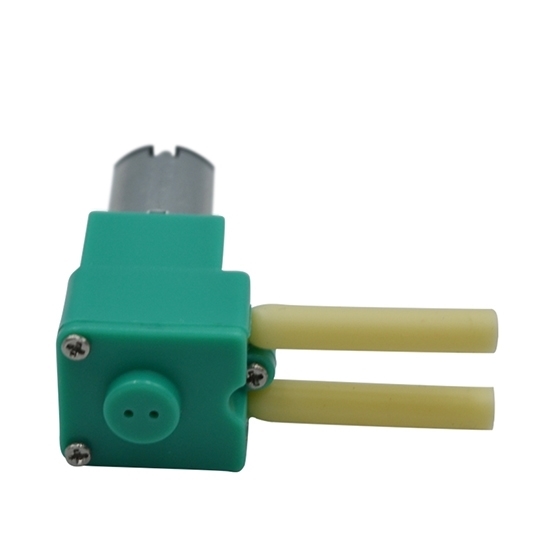

4mL/min DC 3V/5V/6V Micro Peristaltic Pump

$46.46

Low price miniature peristaltic pump works at DC 3V/3.7V/5V/6V power supply. Flow rate 1~4mL/min (1.52GPD), maximum power 0.5

SKU: CHN-PDP-M4

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Micro peristaltic dosing pump for sale, rated voltage DC 3V/3.7V/5V/6V, flow rate 1~4mL/min (1.52 gallon per day), 2 transmission hoses, inner diameter 1.8mm. Miniature peristaltic metering pump for medical/laboratory/home use, which can transport medium such as weak acid, weak base, clean water, oil, etc.

Specification

Model	CHN-MPP20
Water Flow Rate	mL/min	1~4
	GPD (gallon/day)	0.38~1.52
Rated Voltage	DC 3V, 3.7V, 5V, 6V
Power	＜0.5W
Tubing Size	Outer Diameter	3.5mm
	Inner Diameter	1.8mm
Overall Size	151938mm
Weight	14g
Rated Life	＞300h

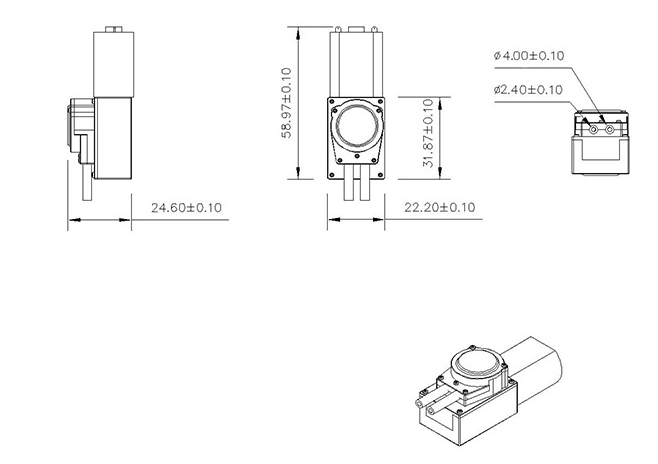

4mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

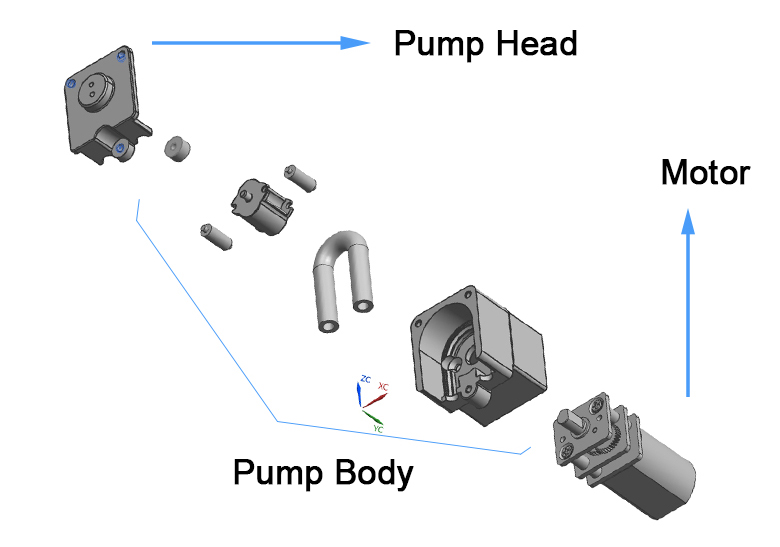

4mL/min Micro Peristaltic Pump Structure Diagram

Micro Peristaltic Pump Applications

Tips: Daily maintenance for micro peristaltic pump.

In the daily use of micro peristaltic pump, it is recommended to replace the hose after long-term use. This will not easily cause the silicone tube to rupture, otherwise the liquid will easily seep from tubing and flow into the roller of pump head. If corrosive liquid flows into the gap of roller, pump head should be disassembled and cleaned in time to prevent it from solidifying in the gap of roller after weathering, causing the pump head to block.

Micro peristaltic pump tubing should be replaced in time according to the specific frequency of use, or the position should be moved frequently. If the liquid is highly corrosive, please choose a hose of the corresponding material to avoid damage to the micro peristaltic pump.
