Home > Pumps > Peristaltic Pump

Send Inquiry

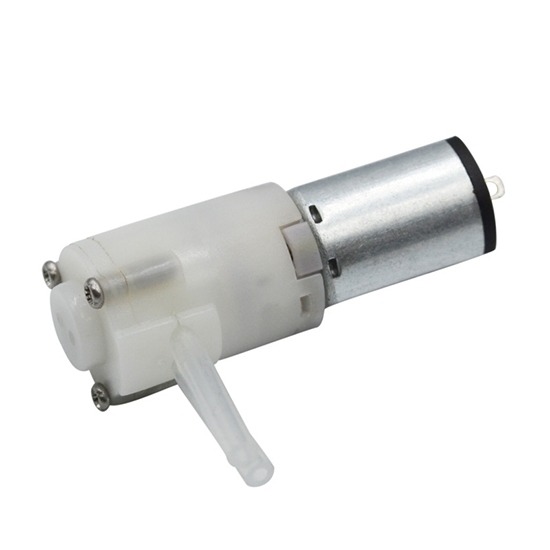

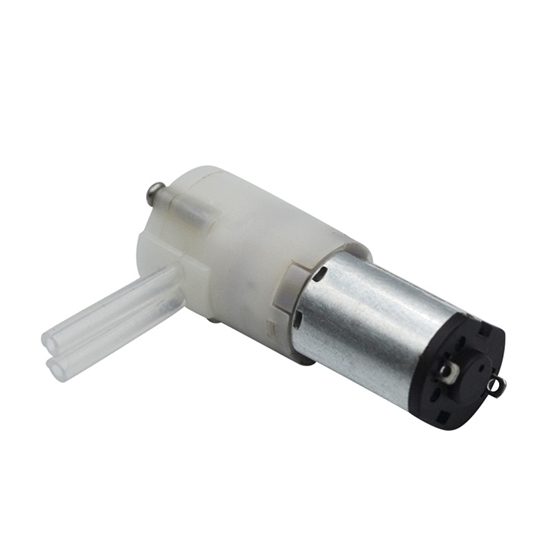

0.5mL/min DC 5V/6V Micro Peristaltic Pump

$43.38

Cheap micro peristaltic pump for sale. Water flow rate 0.3~0.5mL/min (0.19GPD), rated voltage DC 5V/6V for selection, power＜1

SKU: CHN-PDP-M05

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Micro peristaltic dosing pump works at DC 5V/6V power supply, flow rate 0.3~0.5mL/min (0.19GPD), 2-tubing with 1mm diameter. Miniature peristaltic metering pump size is only 10.5*10.5*28mm, used for NPWT, sphygmomanometer, medical ventilator, dental flusher, coffee machine, dishwasher, water dispenser, car air purifier, etc.

Specification

Model	CHN-MPP05
Water Flow Rate	mL/min	0.3~0.5
	GPD (gallon/day)	0.11~0.19
Rated Voltage	DC 5V, 6V
Power	＜1W
Tubing Size	Outer Diameter	2mm
	Inner Diameter	1mm
Overall Size	10.510.528mm
Weight	4g
Rated Life	＞100h

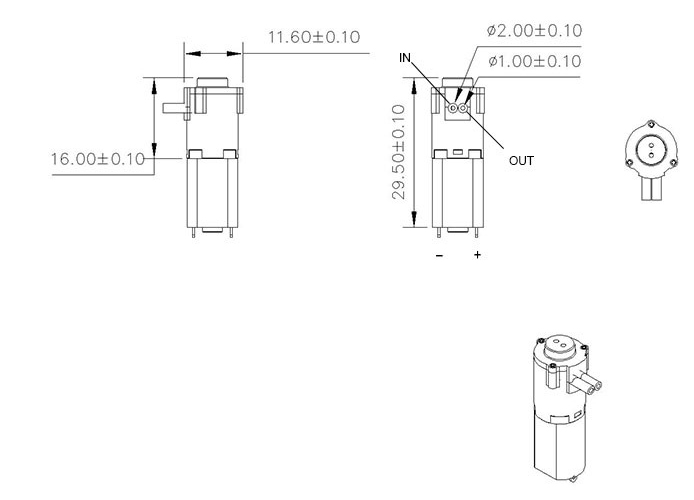

0.5mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

Micro Peristaltic Pump Applications

Tips: Superiority of micro peristaltic pump.

No pollution. The fluid only touches the pump tubing, not the pump body.
High precision. Repeatability, good stability and high precision.
Low shear force. Micro peristaltic pump is an ideal tool for conveying shear-sensitive and aggressive fluids.
Good airtightness. Micro peristaltic pump has good self-suck ability and can be idling to prevent liquid backflow.
Simple maintenance. Micro peristaltic pump has no valves and seals.
Micro peristaltic pump has the same flow capacity in both directions. In the case of no-liquid load operation, it will not cause damage to any parts of the pump. Micro peristaltic pump can generate up to 98% vacuum. Micro peristaltic pump can easily transport liquid or gas-liquid mixed phase fluids. Only the hose is the component that needs to be replaced, and the replacement operation is extremely simple.
