Electromagnetic Clutch, DC 24V, 200Nm/400Nm

Home > Transmission & Actuator > Brakes and Clutches > Electromagnetic Clutches and Brakes

Send Inquiry

Electromagnetic Clutch, DC 24V, 200Nm/400Nm

$209.23

Affordable price electromagnetic clutch with connection, disconnection, variable speed, reversible transmission, micro-motion

SKU: CHN-EC-FCI

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

High quality electromagnetic clutch max speed 1800r/min, 24V DC voltage, it has simple structure, fast action, small control energy, and easy remote control.

Specification:

Model	CHN-FCI-006	CHN-FCI-015	CHN-FCI-025	CHN-FCI-050	CHN-FCI-100	CHN-FCI-200	CHN-FCI-400
Static Torque[kgf-m](N-m)	0.6 (6)	1.5 (15)	2.5 (25)	5.0 (50)	10 (100)	20 (200)	40 (400)
Dynamic Torque[kgf-m](N-m)	0.5 (5)	1.0 (10)	2.0 (20)	4.0 (40)	8 (80)	16 (160)	32 (320)
Rated Voltage	DC 24V
Power (W) at DC 24V, 20℃, no load	11	15	20	25	35	45	60
Weight (kg)	0.46	0.83	1.5	2.76	5.1	9.3	17
Maximum Speed (r/min)	1800
Document	Download Electromagnetic Brake Installation Manual

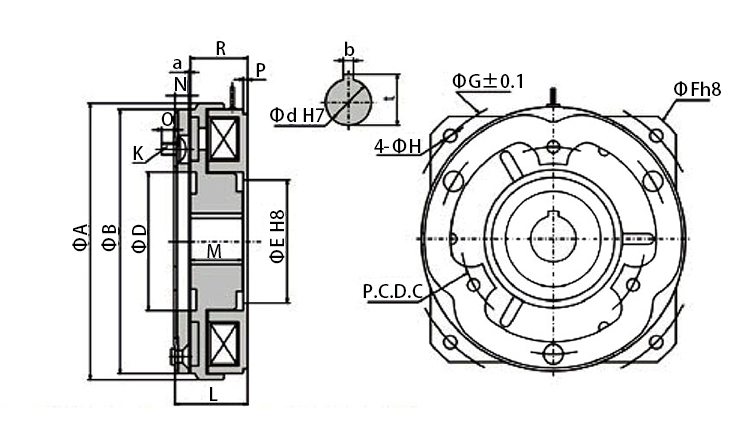

Electromagnetic Clutch Dimension (Unit=mm)

Model	CHN-FCI-006	CHN-FCI-015	CHN-FCI-025	CHN-FCI-050	CHN-FCI-100	CHN-FCI-200	CHN-FCI-400
A	74	93	116	144	180	228	280
B	70	88	110	137	172	217	257
C	50	60	76	95	120	158	164
D	35	47	55	67	90	107	127
E	35	45	52	65	80	100	117
F	90	110	135	165	210	265	310
G	80	98	122	150	190	240	290
H	4.5	5.5	6.5	6.5	6.5	8.5	10.5
K	M3	M4	M5	M6	M8	M10	M12
L	30.3	33.9	38.8	44.5	50.7	60.5	61.3
M	22	24	27	30	34	40	48
N	6.3	7.4	8.8	11	13.2	16.5	20.9
O	5	6.5	8	11	14	17.5	21.9
P	1.6	2	2	2.5	3	3.2	3.7
R	24	26.5	30	33.5	37.5	44	48.5
T	2	2.5	3	3.5	3.5	4	4.5
a	0.2	0.2	0.5	0.3	0.3	0.3	0.3
b	4	5	5	7	7	10	12
t	13.8	17.3	22.3	28.3	33.3	43.3	53.3
d (Axis Dimension)	12	15	20	25	30	40	45

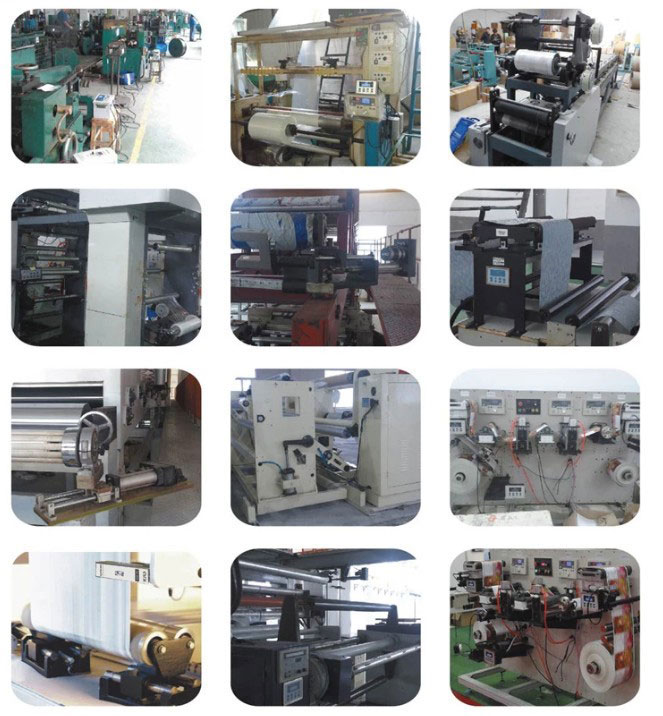

Electromagnetic Clutch applications

Tips: The working principle of the electromagnetic clutch

When the electromagnetic clutch is energized (standard voltage is 24 V DC), the coil generates a strong magnetic field, and the armature plate is attracted to the friction bush of the electromagnetic clutch rotor by the magnetic force. The driving or braking torque is transmitted through the plate spring, there is no slip during operation, and there is no wear after connection.

After the power is lost, the armature plate leaves the electromagnetic brake yoke or the bush of the electromagnetic clutch rotor under the action of the plate spring force to prepare for the next action. There is no residual torque when released. The electromagnetic clutch can be transmitted horizontally or vertically to achieve torque transmission, regardless of high speed or no load.
