Electromagnetic Clutch, DC 24V, 100Nm/200Nm

Home > Transmission & Actuator > Brakes and Clutches > Electromagnetic Clutches and Brakes

Send Inquiry

Electromagnetic Clutch, DC 24V, 100Nm/200Nm

$154.68

Electromagnetic clutch for sale, static torque can select 6Nm,15Nm, 25Nm, 50Nm, 100Nm, 200Nm to 400Nm, rated voltage 24V, ma

SKU: CHN-EC-FCD12

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Low price electromagnetic clutch DC 24V, good heat dissipation, even if the high-frequency, high-energy, but also very durable. Electromagnetic clutch can be used to control mechanical starting, reverse, speed regulation and braking.

Specification:

Model	CHN-FCD-006	CHN-FCD-015	CHN-FCD-025	CHN-FCD-050	CHN-FCD-100	CHN-FCD-200	CHN-FCD-400
Static Torque[kgf-m](N-m)	0.6 (6)	1.5 (15)	2.5 (25)	5.0 (50)	10 (100)	20 (200)	40 (400)
Dynamic Torque[kgf-m](N-m)	0.5 (5)	1.0 (10)	2.0 (20)	4.0 (40)	8 (80)	16 (160)	32 (320)
Rated Voltage	DC 24V
Power (W) at DC 24V, 20℃, no load	11	15	20	25	35	45	60
Weight (kg)	0.46	0.83	1.5	2.76	5.1	9.3	17
Maximum Speed (r/min)	1800
Document	Download Electromagnetic Brake Installation Manual

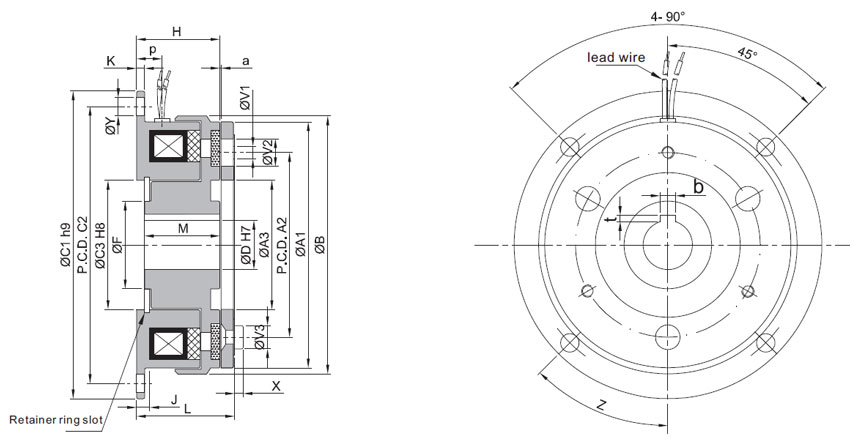

Electromagnetic Clutch Dimension (Unit=mm)

Model		CHN-FCD-006	CHN-FCD-015	CHN-FCD-025	CHN-FCD-050	CHN-FCD-100	CHN-FCD-200	CHN-FCD-400
Radius	A1	63	80	100	125	160	200	250
	A2	46	60	76	95	120	158	210
	A3	34.5	41.5	51.5	61.5	79.5	99.5	124.5
	B	67.5	85	106	133	175	215	270
	C1	80	100	125	150	190	230	290
	C2	72	90	112	137	175	215	270
	C3	35	42	52	62	80	100	125
	D	12	15	20	25	30	40	50
	F	23	28.5	40	45	62	77	100
	V1	3-3.1	3-4.1	3-5.1	3-6.1	3-8.1	3-10.2	3-12.2
	V2	3-6.3	3-8	3-10.5	3-12	3-15	3-18	4-22
	V3	3-6	3-7	3-9	3-10.5	3-14	3-17	4-19
	Y	5	6	7	7	9.5	9.5	11.5
	Z	6-60°						8-45°
Shaft	H	24	26.5	30	33.5	37.5	44	51
	J	3.5	4.3	5	5.5	6	7	8
	K	2	2.5	3	3.5	4	5	6
	L	28	31	36	40.5	46.5	55.5	64
	M	15	20	25	30	38	45	54
	P	7.5	8	9	9	11.5	13	15.5
	X	1.5	1.8	2.1	2.8	3.4	4.5	5.1
	a	0.2(±0.05)			0.3^+0.05_-0.1		0.5^-0_-0.2
	b	4	5	5	7	7	10	12
	t	1.8	2.3	2.3	3.3	3.3	3.8	3.8

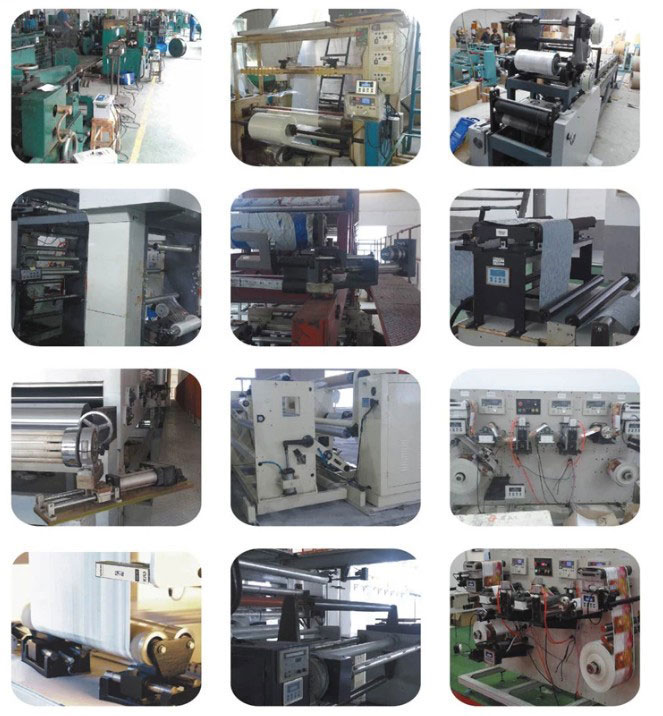

Electromagnetic Clutch applications

Tips: Electromagnetic clutch features

1. High-speed response, because it is a dry type, the torque is conveyed quickly, and convenient movements can be achieved.
2. Durable, good heat dissipation, and the use of advanced materials, even high frequency, high energy use, is also very durable.
3. The assembly and maintenance are easy, and the magnetic field coils contained in the ball bearings are static, so that it is not necessary to take out the center core and it is not necessary to use a carbon brush, and the use is simple.
4. The action is indeed, using the plate-shaped shrapnel, although there is strong vibration, it will not be loose, and the durability is good.
