Model	CHN-FBI-006	CHN-FBI-015	CHN-FBI-025	CHN-FBI-050	CHN-FBI-100	CHN-FBI-200	CHN-FBI-400
Static Torque[kgf-m](N-m)	0.6 (6)	1.5 (15)	2.5 (25)	5.0 (50)	10 (100)	20 (200)	40 (400)
Dynamic Torque[kgf-m](N-m)	0.5 (5)	1.0 (10)	2.0 (20)	4.0 (40)	8 (80)	16 (160)	32 (320)
Rated Voltage	DC 24V
Power (W) at DC 24V, 20℃, no load	11	15	20	25	35	45	60
Weight (kg)	0.28	0.5	0.91	1.68	3.15	5.9	10.5
Maximum Speed (r/min)	1800
Document	Download Electromagnetic Brake Installation Manual

Model	CHN-FBI-006	CHN-FBI-015	CHN-FBI-025	CHN-FBI-050	CHN-FBI-100	CHN-FBI-200	CHN-FBI-400

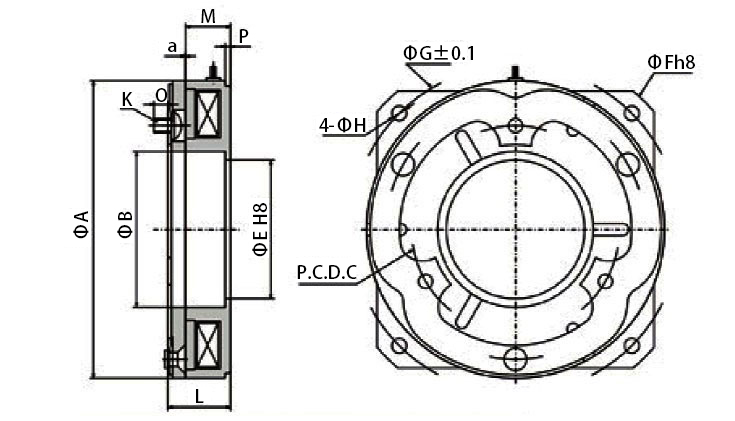

A	70	88	110	137	172	217	272
B	28	32	42	50	65	80	95
D	12	15	20	25	30	40	50
E (Hole Dimension)	35	45	52	65	80	100	120
F	90	110	135	165	210	265	390
G	80	98	122	150	190	240	300
H	4.5	5.5	6.5	6.5	8.5	11	13.5
L	39.3	47.4	55.8	65	79.2	96.5	116.7
M	18	20	22	24	26	30	34
N	24.3	27.4	30.8	35	39.2	46.5	49.7
O	15	20	25	30	40	50	60
P	1.6	2	2	2.5	3	3.2	3.7
S	6	8	8	10	12	15	18
m	M3	M4	M5	M6	M8	M10	M12
a	0.2	0.2	0.2	0.3	0.3	0.5	0.5
b	4	5	5	07	7	10	10
t	13.8	17.3	22.3	28.3	33.3	43.3	53.3
