Servo Motor Encoder Slip Ring

Factory price servo motor encoder slip ring is a special inner wiring and shielding design to avoid encoder errors. It can combine with pneumatic and hydraulic rotary unions. The contact material is precious metal with hard gold plating, which ensures wear resistant and ant-oxidative for a long working life.

Specification

• Model: CHN-ZM056
• Number of Passages: 4 Passages
• Torque: 0.1N.m+0.03N.m/6 circuits
• Voltage Range: Power: 0~440VAC/VDC; Signal: 0~440VAC/VDC
• Lead Wire Spec.: Power: power cable or AWG #17 Teflon wire; Signal: 6 cores shielded cable or AWG#22 Teflon wire
• Max. Rotating Speed (Optional): 400 rpm, 800 rpm, 1200 rpm
• Working Temperature: -30℃~80℃
• Work Humidity: 0~85% RH
• Contact Material: Precious Metal
• Housing Material: Aluminum Alloy
• Working Life: 20/60/150 million for ref
• Insulation Resistance:≥1000MΩ/500VDC
• Lead Wire Length: standard 300mm (can be customized)
• Certification: CE, RoHS
• Electrical Noise: <0.01Ω
• Loss Rate: <0.02%
• Weight: About 1 kg

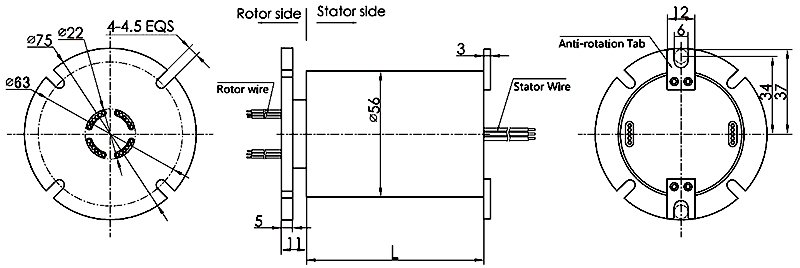

Dimension Drawing (Unit: mm)

Standard Model List

Note: Please contact us if you have special requirements for ATO slip ring. The package includes the controller.

Tip: Why choose ATO servo motor encoder slip ring?
